Hyundai Sonata LF: Body (Interior and Exterior) / Roof Trim

Cowl Cross Bar Assembly Repair procedures

Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage...

Components and Components Location

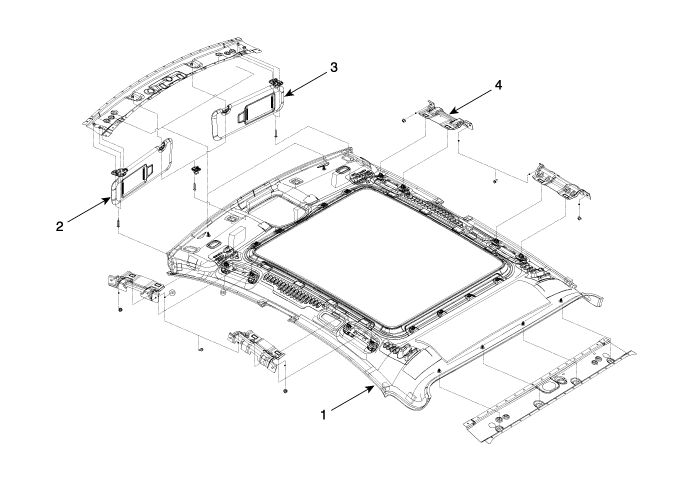

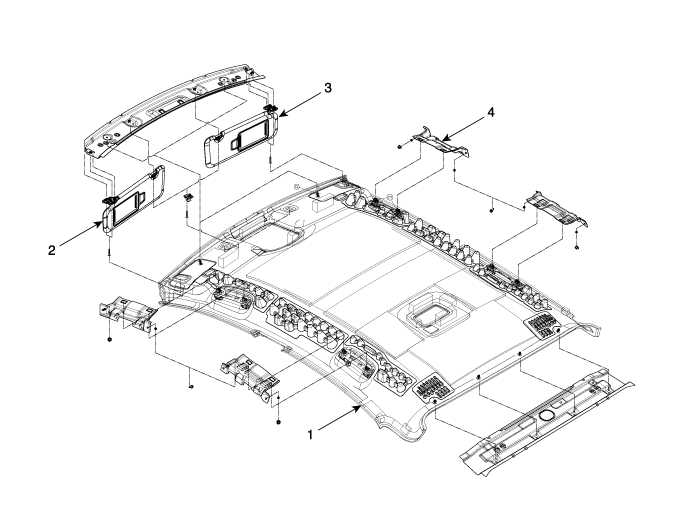

Components [General Type] 1. Roof trim2. Sunvisor [LH]3. Sunvisor [RH]4. Assist handle bracket [Panorama Sunroof Type] 1. Roof trim2. Sunvisor [LH]3...
