Hyundai Sonata LF: Body (Interior and Exterior) / Mirror

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Mirror

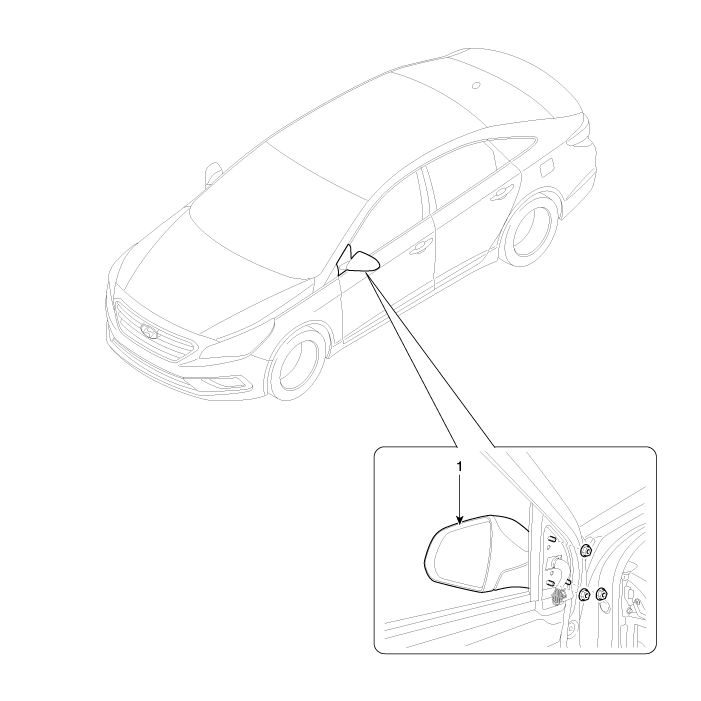

Outside Rear View Mirror Components and Components Location

Component Location

1. Outside rear view mirror

Outside Rear View Mirror Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

1.	After loosening the mounting clips, then remove the front door quadrant inner cover (A).

2.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

3.	Disconnect the outside rear view mirror connector (A).

After loosening the mounting nuts, then remove the outside rear view mirror (B).

Tightening torque :

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Replace any damaged clips.

Inside Rear View Mirror Components and Components Location

Component Location

1. Inside rear view mirror

Inside Rear View Mirror Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

1.	Remove the inside rear view mirror cover (A).

2.	Disconnect the inside rear view mirror connector (A).

3.	Push the ECM mirror base down to remove the ECM mirror assembly (A).

Install in the reverse order of removal.

•	Be careful not to windshield glass.
