Hyundai Sonata LF: Body (Interior and Exterior) / Cowl Top Cover

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Cowl Top Cover

Components and Components Location

Component Location

1. Cowl top cover

Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

Remove the cap (A) and remove the nuts, then remove the wiper arm (B).

Tightening torque :

22.6 ~ 26.5 N.m (2.3 ~ 2.7 kgf.m, 16.6 ~ 19.5 lb-ft)

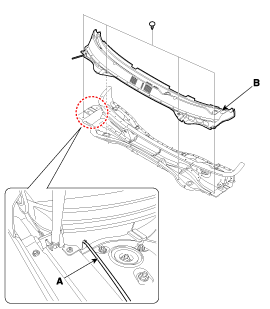

2.	Disconnect the nozzle hose (A).

3.	Detach the clips, then remove the cowl top cover (B).

Install in the reverse order of removal.

•	Replace any damaged clips.
