Hyundai Sonata: Hood / Hood Assembly Repair procedures

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Hood / Hood Assembly Repair procedures

Replacement

•	Be careful not to damage the hood and body.

•	When removing and installing the hood, an assistant is necessary.

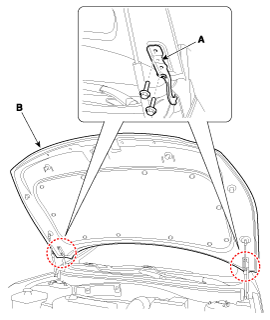

After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).

Tightening torque :

21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)

Install in the reverse order of removal.

•	Make sure the hood locks / unlocks and opens / closes properly.

•	Adjust the hood alignment.

Hood Assembly Components and Components Location

Component Location 1. Hood assembly ...

Hood Lift Repair procedures

Replacement • When removing and installing the hood lift, an assistant is necessary. • When removing the hood lift, first remove the lower portion and then upper ...
