Components

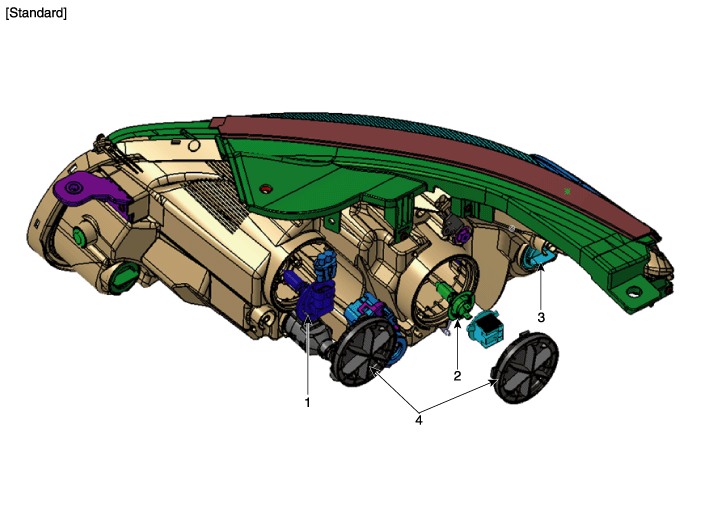

1. High beam bulb
2. Low beam bulb
3. Turn signal lamp / Side marker lamp
4. Dust cap

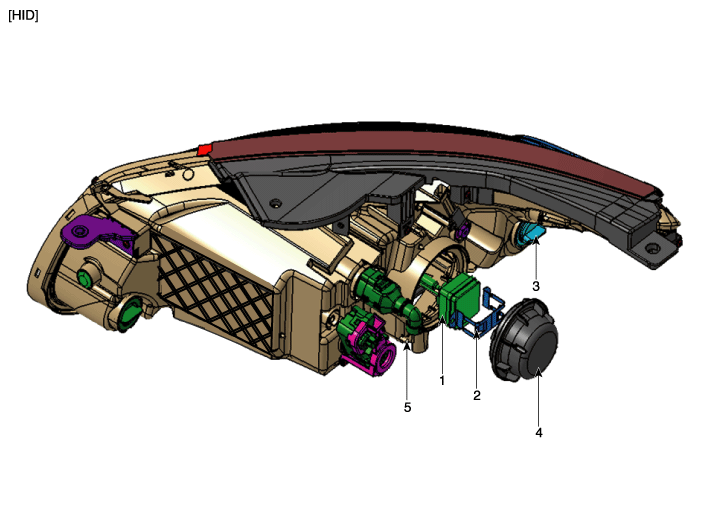

1. HID low beam/high beam bulb (Bi-Function)
2. HID bracket
3. Turn signal lamp / Side marker lamp
4. Dust cap
5. Ballast

Components and Components Location
Component Location 1. Head lamp (Low)2. Head lamp (Low/High BI _Function)3. Head lamp (High) 4. Side marker lamp 5. Turn signal lamp6. Position lamp7. Daytime Running Light (DRL)8. Turn signal la ...

Head Lamps Description and Operation
HID Head Lamp 1. Bulb (1) Elements Xenon gas : Xenon gas activates the initial reaction for rapid illuminating. Molybdenum electrode: anode arcing Metal halide salts: color composing componen ...
