Hyundai Sonata: Lighting System / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Lighting System / Components and Components Location

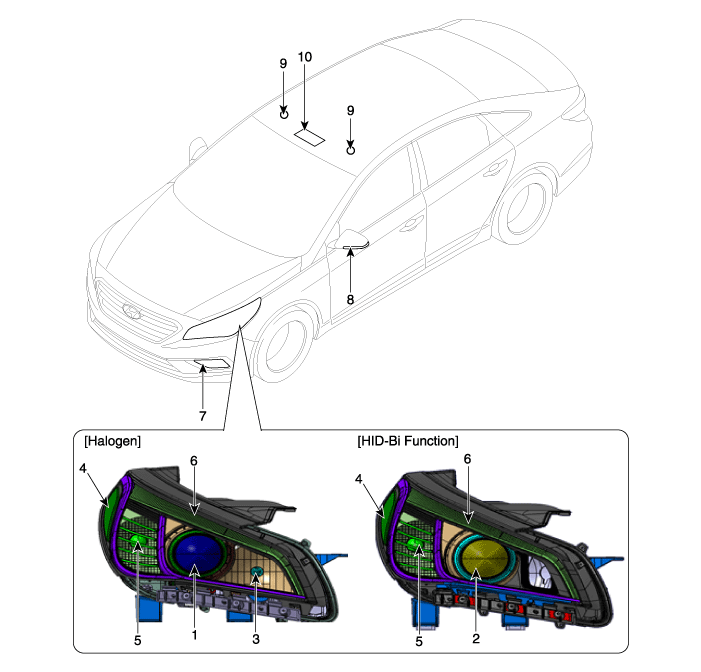

Component Location

1. Head lamp (Low)
2. Head lamp (Low/High BI _Function)
3. Head lamp (High)
4. Side marker lamp
5. Turn signal lamp

6. Position lamp
7. Daytime Running Light (DRL)
8. Turn signal lamp (Door mirror)
9. Room lamp
10. Map lamp

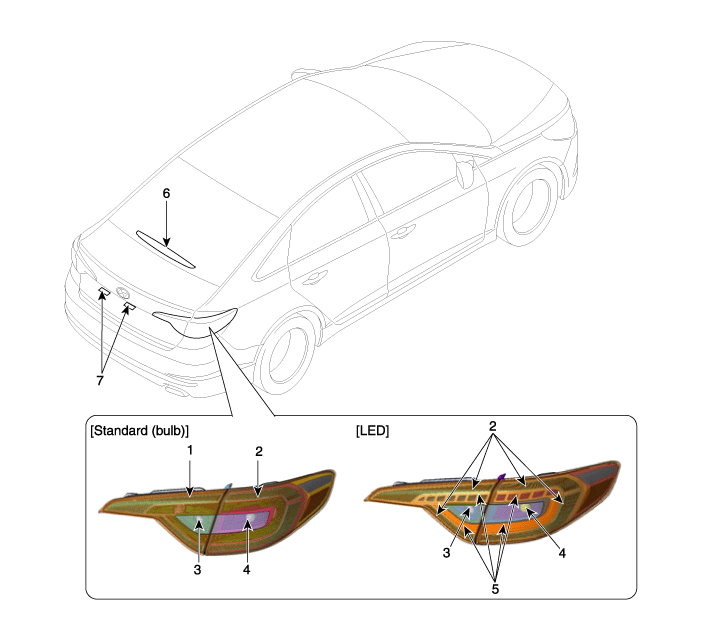

1. Tail lamp
2. Stop/Tail lamp
3. Back up lamp
4. Turn signal lamp

5. Stop lamp
6. High mounted stop lamp
7. Lisence lamp

Specifications

Specification ItemTypeBulb Watt (W)FrontA : HalogenB : HIDHead lamp (Halogen)Low beam/High beam(A Type)9005L+ /9005HL+66/60Low beam/High beam(B Type)D3S / Bi-Function35Front turn signal lamp ...

Head Lamps Components and Components Location

Components 1. High beam bulb2. Low beam bulb3. Turn signal lamp / Side marker lamp4. Dust cap 1. HID low beam/high beam bulb (Bi-Function)2. HID bracket3. Turn signal lamp / Side marker lamp ...
