Hyundai Sonata: Front Door / Front Door Outside Handle Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle Components and Components Location

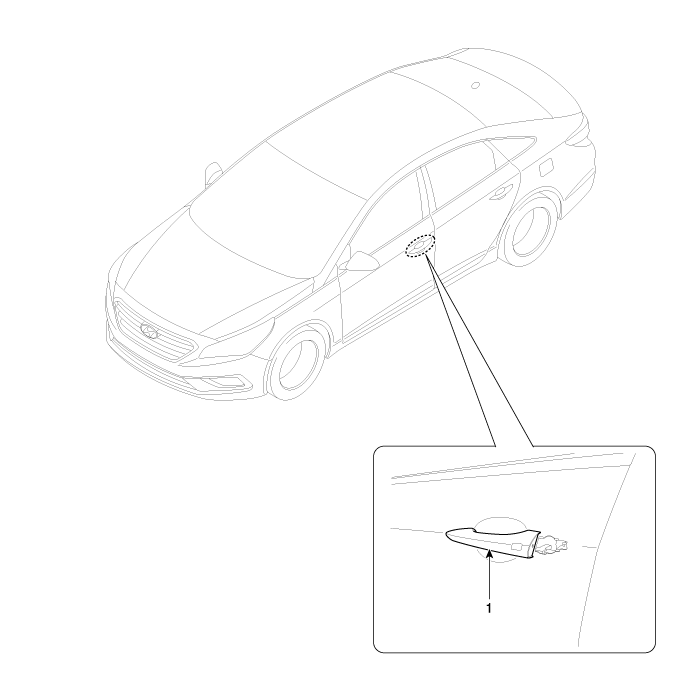

Component Location

1. Front door outside handle


Front Door Module Repair procedures
Replacement 1. Remove the front door window glass. (Refer to Front Door - "Front Door Window Glass") 2. Remove the front door outside handle. (Refer to Front Door - "Front Door Outside Hand ...

Front Door Outside Handle Repair procedures
Replacement 1. Remove the hole plug (B). 2. After loosening the mounting bolt, then remove the front door lock (A). Tightening torque : 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft) ...
