Replacement
1.
Remove the front door window glass.
(Refer to Front Door - "Front Door Window Glass")
2.
Remove the front door outside handle.
(Refer to Front Door - "Front Door Outside Handle")
3.
Loosen the front door outside handle base mounting screw (A).

4.
Disconnect the outside rear view mirror connector (A).

5.

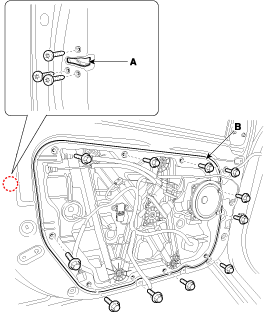

Loosen the front door latch (A) mounting screws.
6.
After loosening the mounting bolts, then remove the front door module (B).
Tightening torque :
Bolt: 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)
Screw: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

7.
Disconnect the connectors and front door module wiring harness (A).

8.
Remove the front door latch assembly.
(Refer to Front Door - "Front Door Latch")
9.
Reomove the front speaker.
(Refer to Body Electrical System - "Speakers")
10.
Remove the front power window motor.
(Refer to Body Electrical System - "Power Window Motor")
11.
Install in the reverse order of removal.

•
The area of whole parts should be applied with sufficient grease.
•
Make sure connectors are connected properly and each rod is connected securely.
•
Make sure the door locks/unlocks and opens / closes properly.
