Hyundai Sonata: Engine Control System / Electric WGT Control Actuator Schematic Diagrams

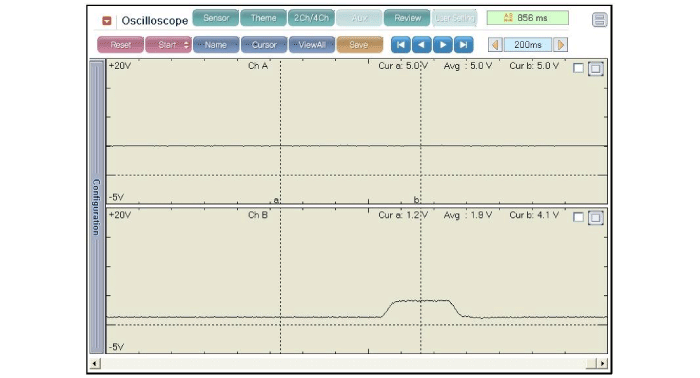

Signal Waveform

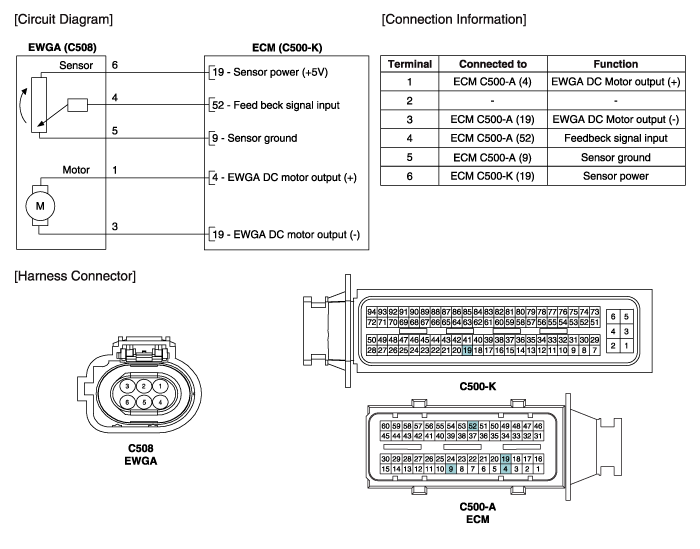

Circuit Diagram

Electric WGT Control Actuator Specifications
Specification [EWGA Position Sensor] Position Output Voltage[V] Operating Angle[°] Range of Rod [mm], reference Mechanical Close end stop Position (MCP) 4.8 0 0 Electrical Close end ...

Electric WGT Control Actuator Repair procedures
Inspection [Motor] 1. Turn ignition switch OFF. 2. Disconnect the EWGA connector. 3. Check that the EWGA is stuck by foreign material. 4. Measure resistance between motor (+) and ( ...
