Front Cross Member

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

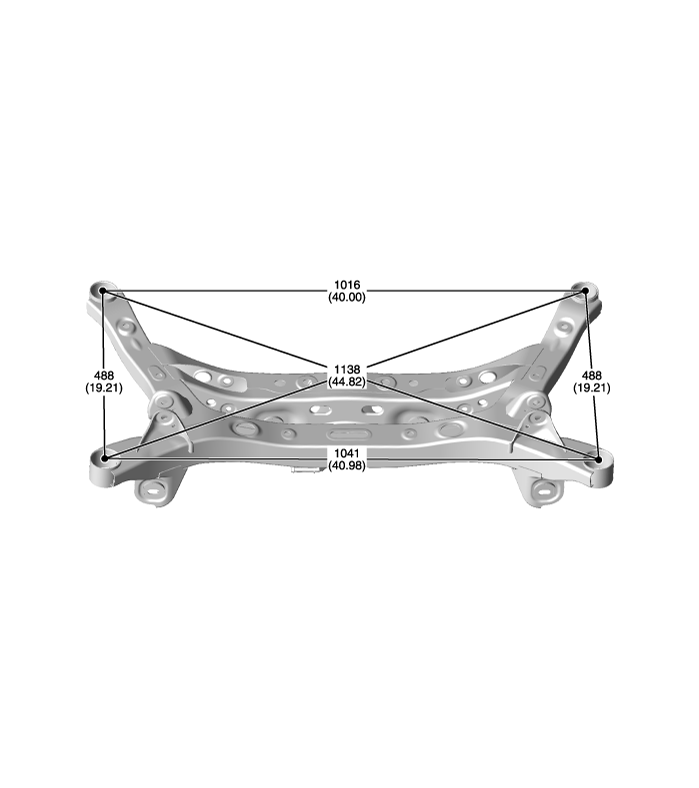

Rear Cross Member

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Under Body Body Repair

Projected Dimensions * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Actual Measurement Dimensions * These dimensions indicated in this figure are actual-measurement dimensions...

Body Panel Gaps Body Repair
