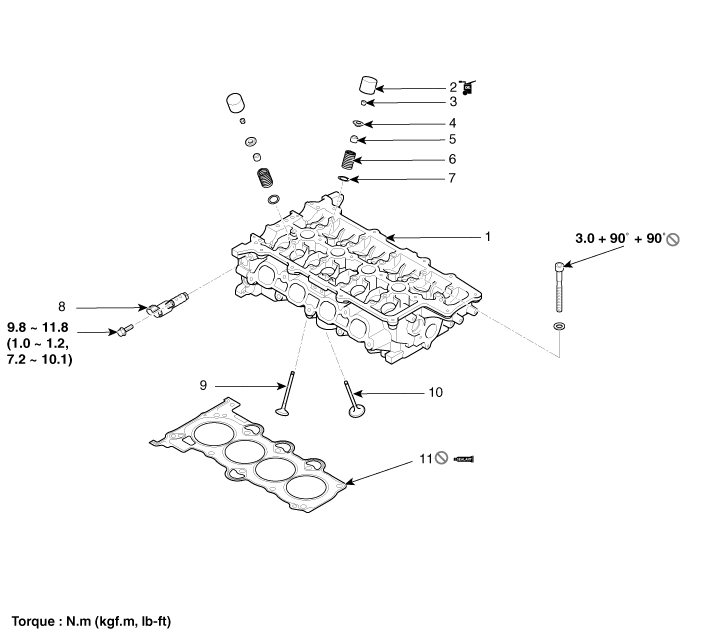

Hyundai Sonata LF: Cylinder Head Assembly / Cylinder Head Components and Components Location

CVVT & Camshaft Repair procedures

Removal 1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Turn the crankshaft damper pulley so that No...

Cylinder Head Repair procedures

Removal Engine removal is not required for this procedure.     • Use fender covers to avoid damaging painted surfaces. • To avoid damaging the cylinder head, wait until the engine coolant temperature drops below normal temperature before removing it...
