Hyundai Sonata: Multifunction Switch / Components and Components Location

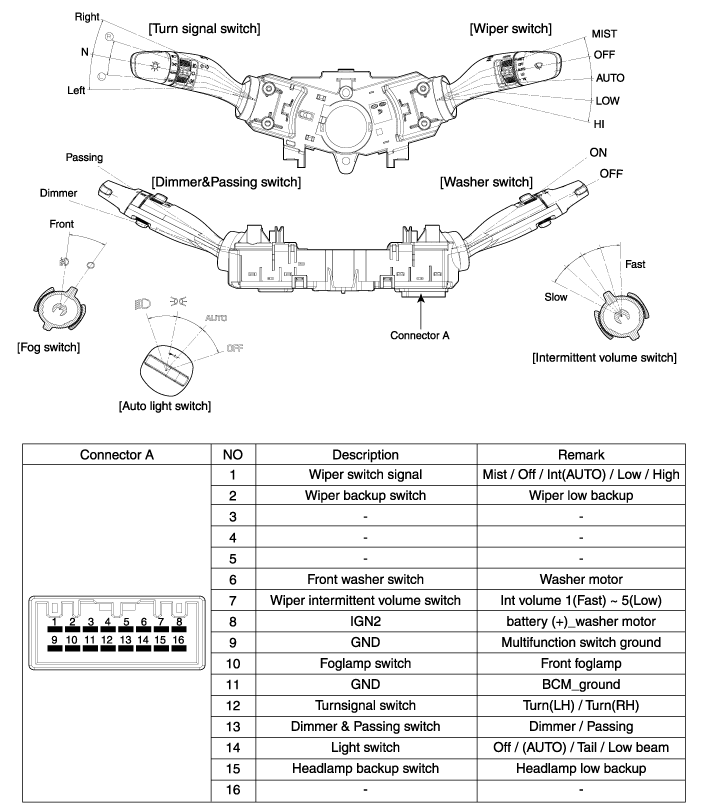

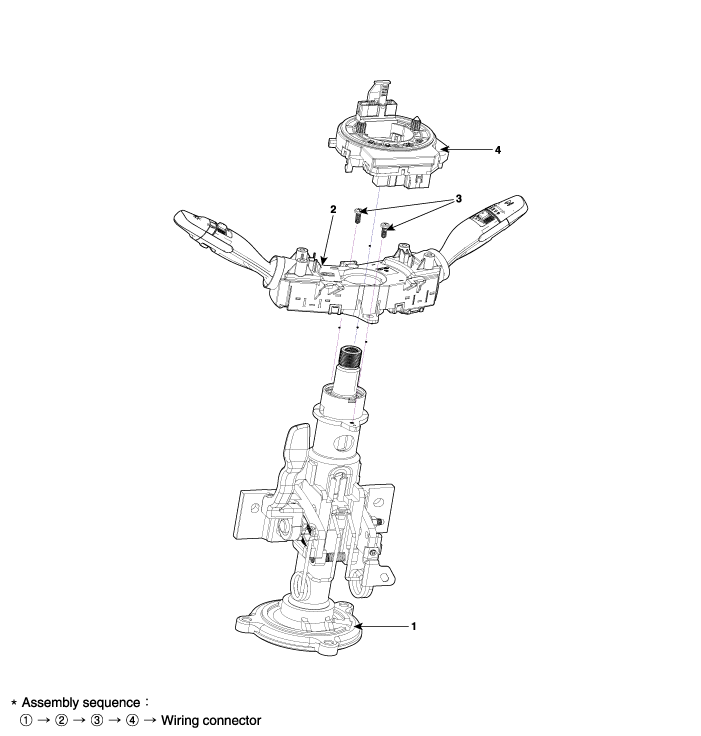

| Component |
| 1. Steering column 2. Multifunction switch | 3. Screw 4. Clock spring |
Specifications
Specifications
ItemsSpecificationsRated voltageDC 12VOperating temperature range-22 ~ +176°F (-30°C ~ +80°C)Rated loadWasherWasher : 6A (Motor load)
...
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
3.
Remove the steering column upper and lower shrouds ...
