Hyundai Sonata: Interior Trim / Components and Components Location
Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Interior Trim / Components and Components Location
| Components |

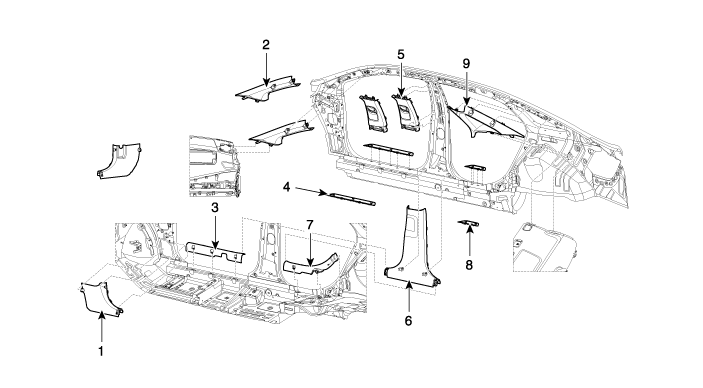

| 1. Cowl side trim 2. Front pillar trim 3. Front door scuff trim 4. Front door step trim 5. Center pillar upper trim | 6. Center pillar lower trim 7. Rear door scuff trim 8. Rear door step trim 9. Rear pillar trim |
Interior Trim
...
Door Scuff Trim Components and Components Location
Component Location
1. Front door scuff trim2. Rear door scuff trim
...
