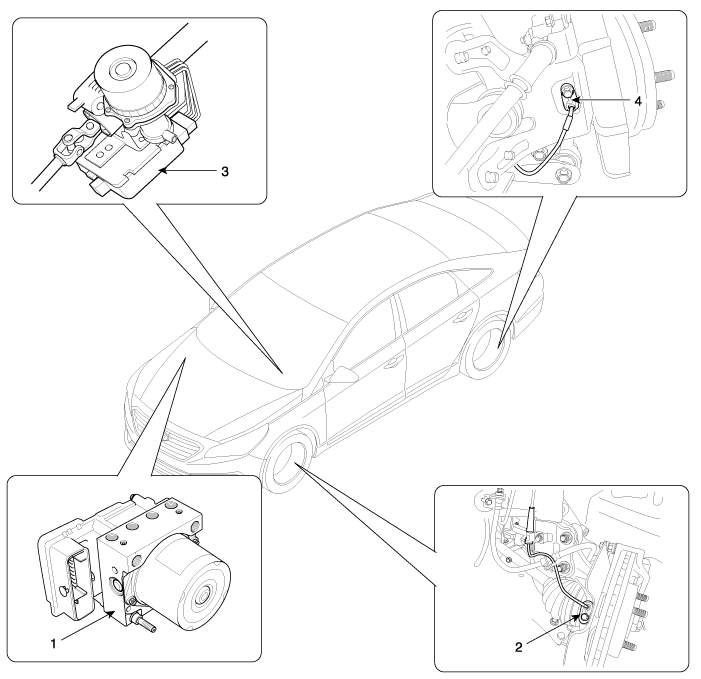

Hyundai Sonata LF: ESP(Electronic Stability Program) System / Components and Components Location

ESP(Electronic Stability Program) System

..

Description and Operation

Description of ESP Optimum driving safety now has a name : ESP, the Electronic Stability Program. ESP recognizes critical driving conditions, such as panic reactions in dangerous situations, and stabilizes the vehicle by wheel-individual braking and engine control intervention with no needfor actuating the brake or the gas pedal...
