Hyundai Sonata: Steering wheel / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Steering System / Steering wheel / Components and Components Location

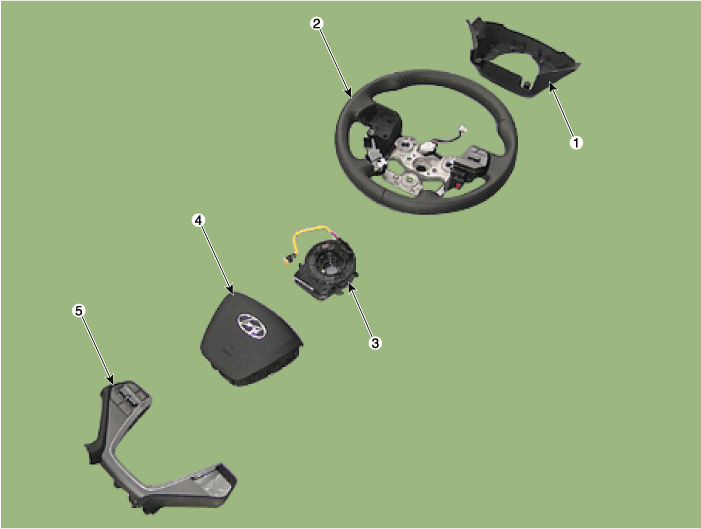

Components

1. Lower cover
2. Steering wheel
3. Clock Spring

4. Driver Airbag (DAB)
5. Remote control switch

Repair procedures

Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels can face straight ahead. 3. ...
