Hyundai Sonata LF 2014-2019 Service Manual / Engine Mechanical System / Cylinder Block / Components and Components Location

Components

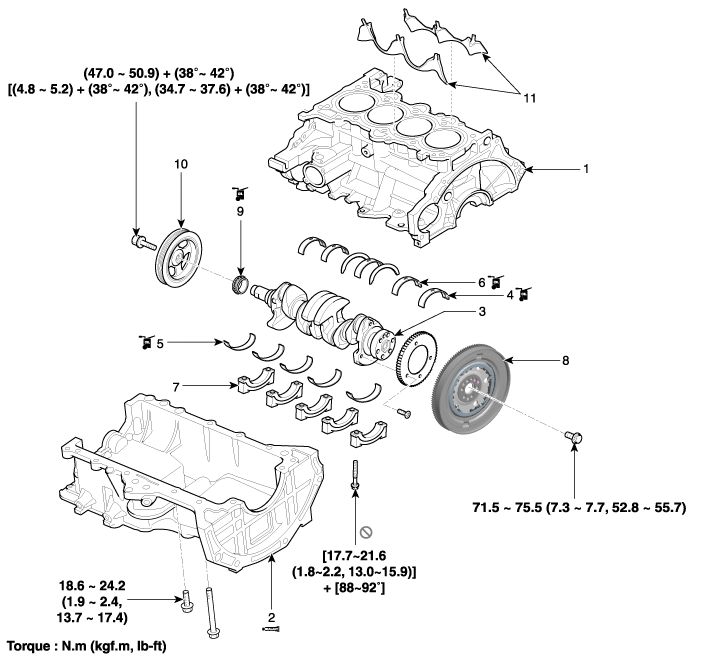

1. Cylinder block
2. Ladder frame
3. Crankshaft
4. Crankshaft upper bearing

5. Crankshaft lower bearing
6. Thrust bearing
7. Main bearing cap
8. External damper flywheel

9. Crankshaft sproket
10. Crankshaft pulley
11. Water jacket insert

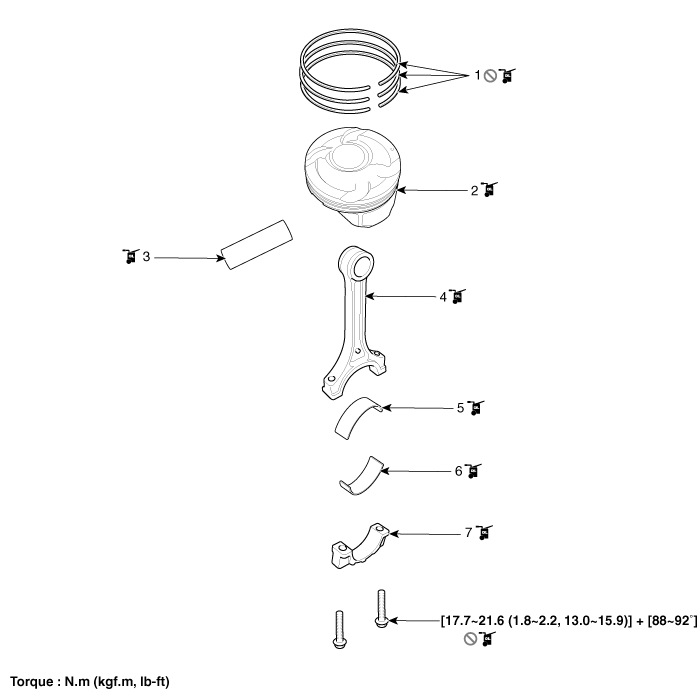

1. Piston ring
2. Piston
3. Piston pin
4. Connecting rod

5. Connecting rod upper bearing
6. Connecting rod lower bearing
7. Connecting rod bearing cap

Cylinder Block

...

External Damper Flywheel Components and Components Location

Components 1. External damper flywheel ...
