Hyundai Sonata: Inside Rearview Mirror / Blue Link® center
For details, refer to the Blue Link® Owner’s Guide, Navigation Manual or Audio Manual.
Day/night rearview mirror
Make this adjustment before you start driving and while the day/night lever is
in the day position.
Pull the day/night lever toward you to reduce glare from the headlights of the
vehicles behind yo ...

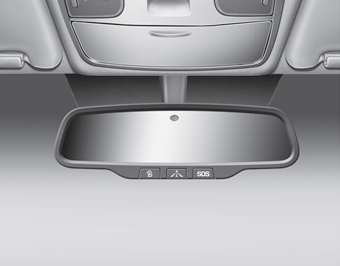

Electric chromic mirror (ECM) with HomeLink® system, compass and Blue Link®
(for U.S.A)
Your vehicle may be equipped with a Gentex Automatic-Dimming Mirror with a Z-Nav™
Electronic Compass Display and an Integrated HomeLink® Wireless Control System.
During nighttime driving, this fe ...
