Hyundai Sonata: Inside Rearview Mirror / Day/night rearview mirror
.jpg)

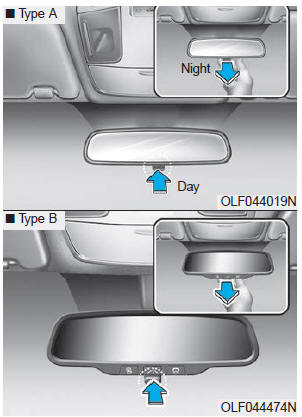

Make this adjustment before you start driving and while the day/night lever is in the day position.
Pull the day/night lever toward you to reduce glare from the headlights of the vehicles behind you during night driving.
Remember that you lose some rearview clarity in the night position.
