Hyundai Sonata: Smart Key System / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Smart Key System / Components and Components Location

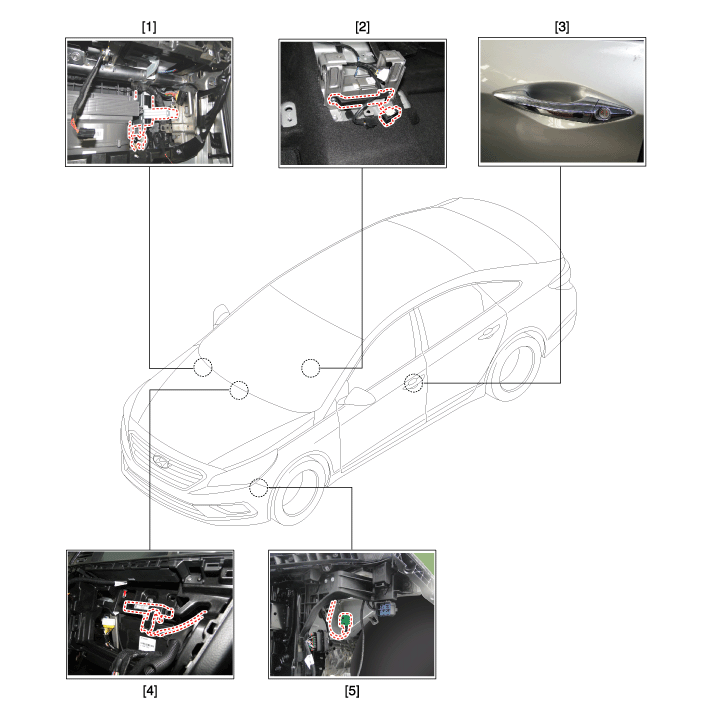

Component Location (1)

1. Smart key unit (SMK)
2. Interior antenna 2
3. Door outside handle

4. Interior antenna 1
5. Buzzer

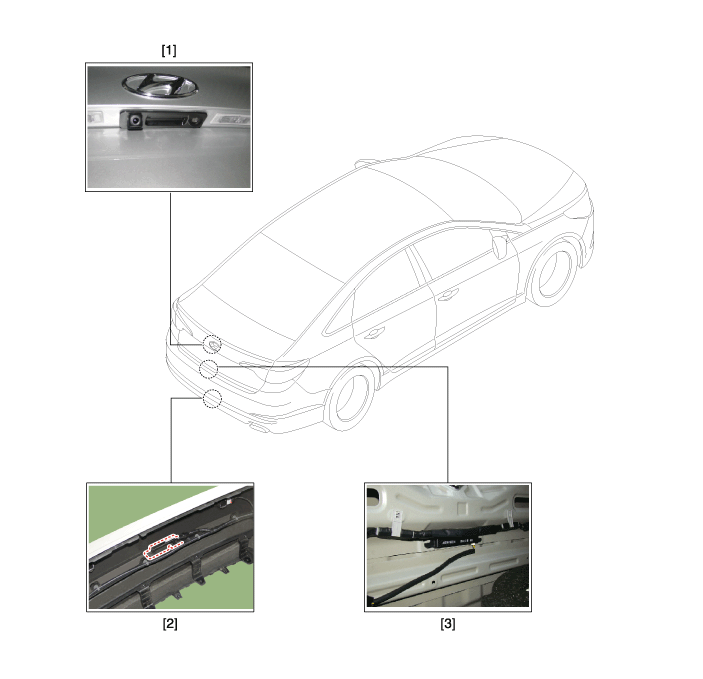

Component Location (2)

1. Trunk open switch
2. Bumper antenna

3. Trunk atenna

Specifications

Specifications Smart Key Unit ItemsSpecificationRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-22°F ~ 176°F (-30°C ~ 80°C)LoadMax. 4mA (When welcome light function off) ...

Description and Operation

Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is n ...
