Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / BLUE LINK / BLUE LINK Remote Control Schematic Diagram

Schematic Diagrams

BLUE LINK Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the main crash pad assembly. (Refer to Body - "Main Crash Pad Assembly") 3. Remove the knee airbag (KAB) module. (Refer ...

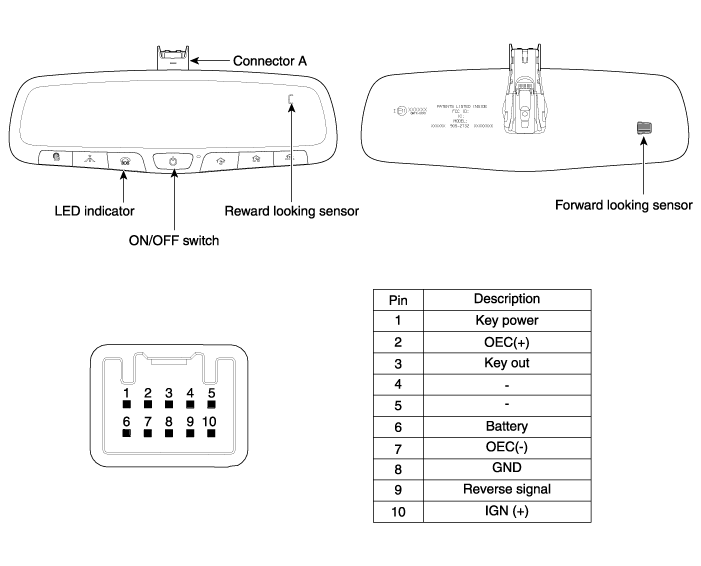

BLUE LINK Remote Control Repair procedures
Removal 1. Remove the Electro chromic Inside rear view mirror. (Refer to Electro Chromic Inside Rear View Mirror) Installation 1. Install the Electro chromic Inside rear view mirror. (Refer ...
