Hyundai Sonata: Blind Spot Detection system / Blind Spot Detection Indicator Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Blind Spot Detection system / Blind Spot Detection Indicator Components and Components Location

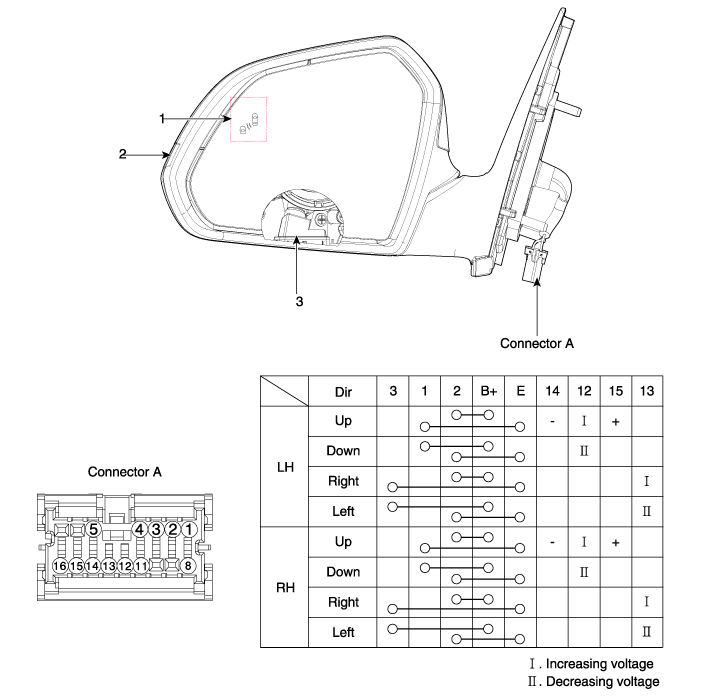

Components

1. AVM Camera
2. Ambient temperature sensor
3. Puddle lamp

Blind Spot Detection Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 3. Rmove the blind spot detection (BSD) switch (A) after diseng ...

Blind Spot Detection Indicator Repair procedures
Removal Blind Spot Detection Warnig Indicator 1. Disconnect the negative (-) battery terminal. 2. Remove the mirro (A). Installation Blind Spot Detection Warnig Indicator 1. Install the ...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Audio Remote Control (Sonata Sports) Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] SwitchConnector TerminalResistance(±5%)SEEK Up4-5430 ?SEEK Down1.11 k?MUTE3.11 k?Volume (+)4.61 k?Volume (-)6.81 k?Voice10.71 k?SEND18.91 k?END40.91 k? 2. Check for resistance be ...

Hyundai Sonata LF 2014-2019 Service Manual: Front Seat Belt Buckle Repair procedures
Replacement 1. Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly") 2. Remove the front seat belt buckle connector wiring harness (A). 3. After loosening the mounting bolt, then remove the front seat belt buckle (A). Tightening torque : 39.2 ~ 53.9 N.m (4.0 ...
