Hyundai Sonata: AVN System / AVN Remote Controller (Sonata Sports) Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / AVN System / AVN Remote Controller (Sonata Sports) Schematic Diagrams

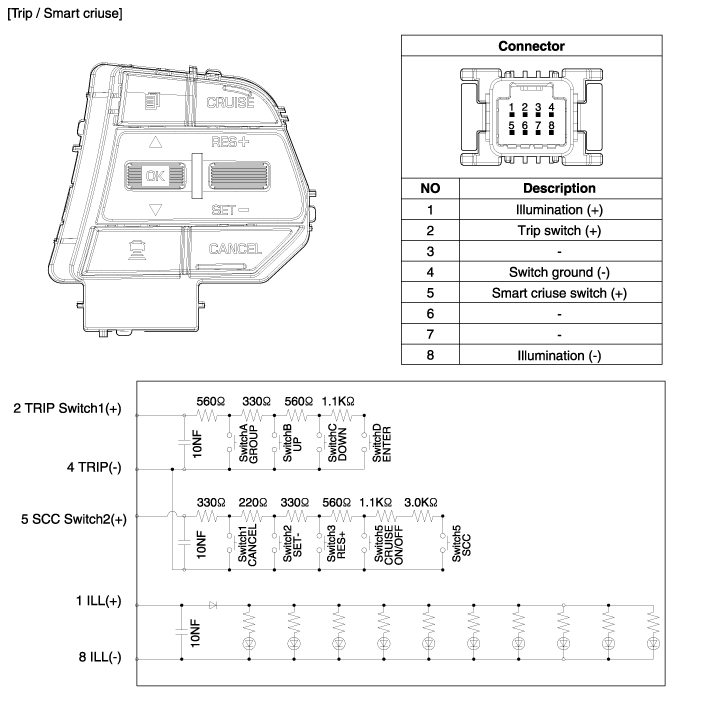

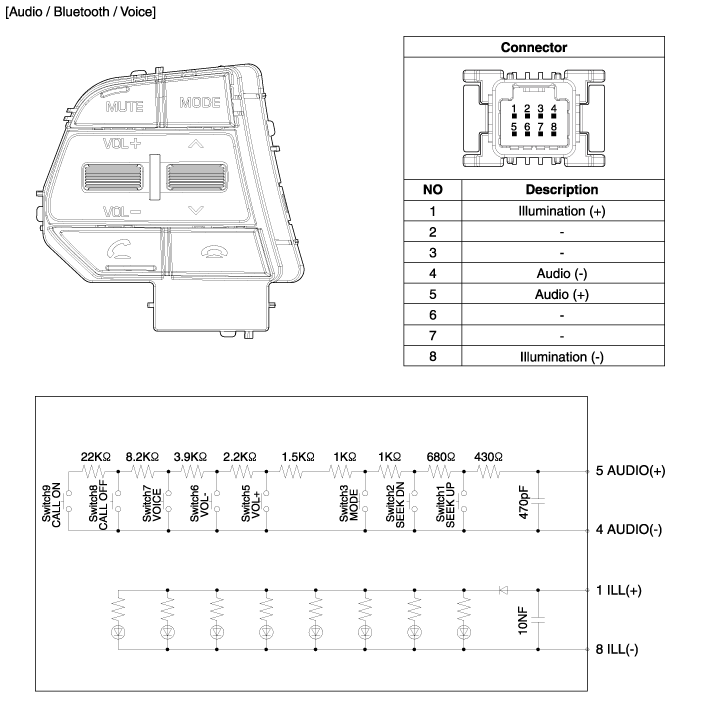

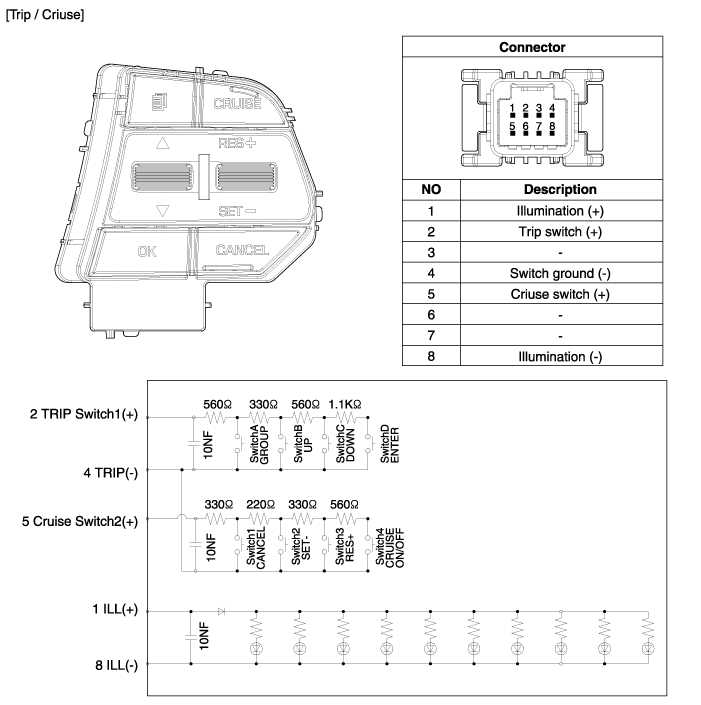

Circuit Diagram

AVN Remote Controller (Sonata Sports) Components and Components Location
Components 1. Left remote control switch (Audio + Hands free)2. Right remote control switch (Cruise+Trip Computer)3. Paddle shift switch (Down)4. Paddle shift switch (Up) ...

AVN Remote Controller (Sonata Sports) Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] SwitchConnector TerminalResistance(±5%)SEEK Up4-5430 ?SEEK Down1.11 k?MUTE3.11 k?Vol ...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Heated Oxygen Sensor (HO2S) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between the HO2S terminals 2 and 5 [B1/S1]. 4. Measure resistance between the HO2S terminals 3 and 4 [B1/S2]. 5. Check that the resistance is within the specification. Specifica ...

Hyundai Sonata LF 2014-2019 Service Manual: Components and Components Location
Components Location 1. PCV Valve2. Canister3. Purge Control Solenoid Valve (PCSV)4. Fuel Tank Pressure Sensor (FTPS)5. Canister Close Valve (CCV)6. Fuel Level Sender (FLS)7. Fuel Tank Air Filter8. Catalytic Converter (WCC+UCC) 1. PCV Valve2. Canister3. Purge Control Solenoid Valve (P ...
