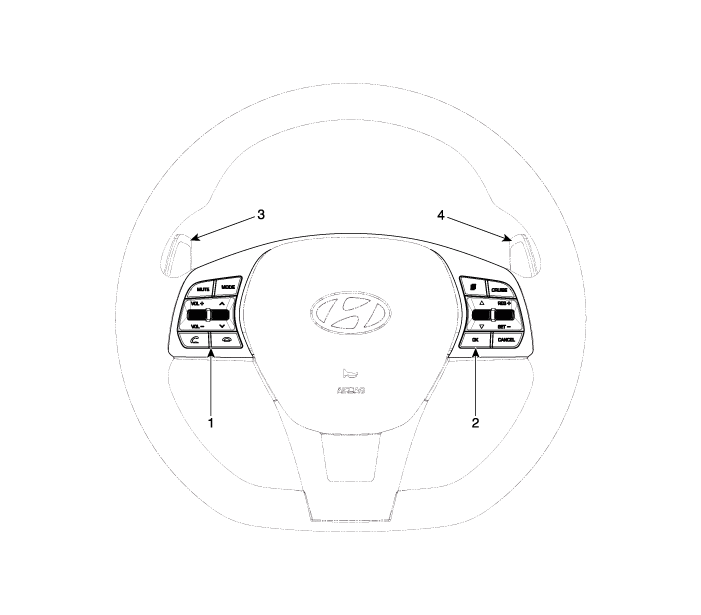

Components

1. Left remote control switch (Audio + Hands free)
2. Right remote control switch (Cruise+Trip Computer)
3. Paddle shift switch (Down)
4. Paddle shift switch (Up)

    AVN Remote Controller Repair procedures

    Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] SwitchConnectorTerminalResistance(±5%)SEEK Up2-5430 ?SEEK Down1...

    AVN Remote Controller (Sonata Sports) Schematic Diagrams

    C..
