Hyundai Sonata: AVN System / AVN Remote Controller Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / AVN System / AVN Remote Controller Schematic Diagrams

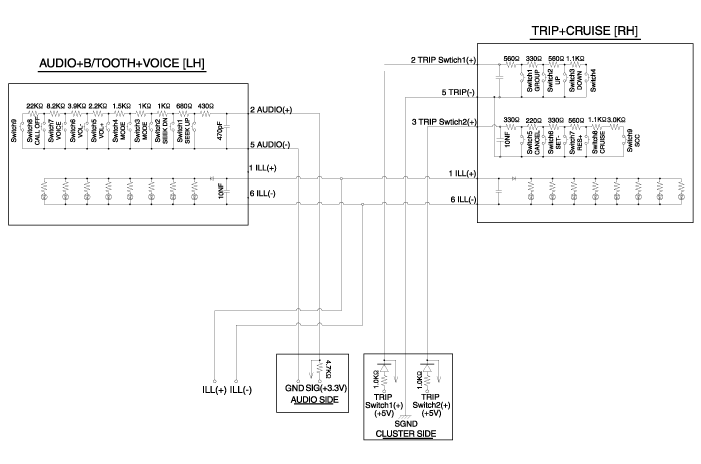

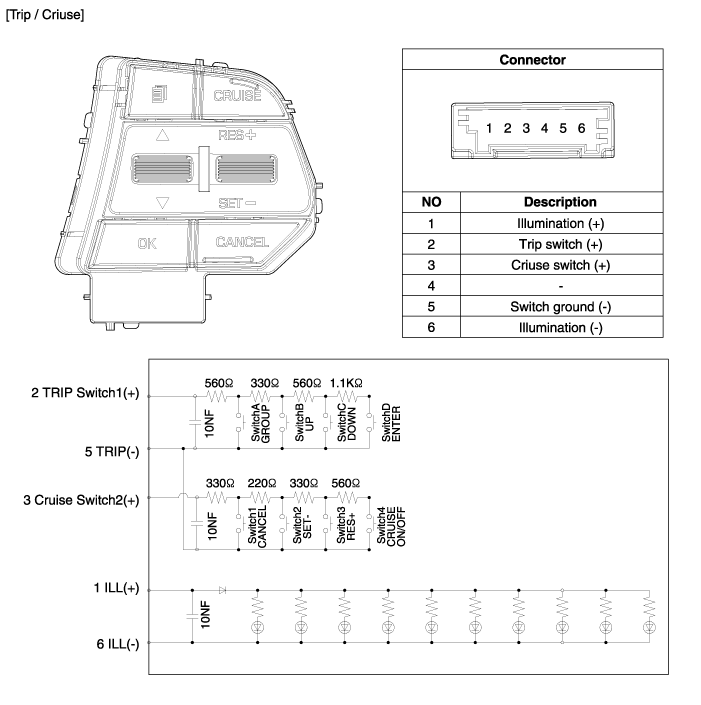

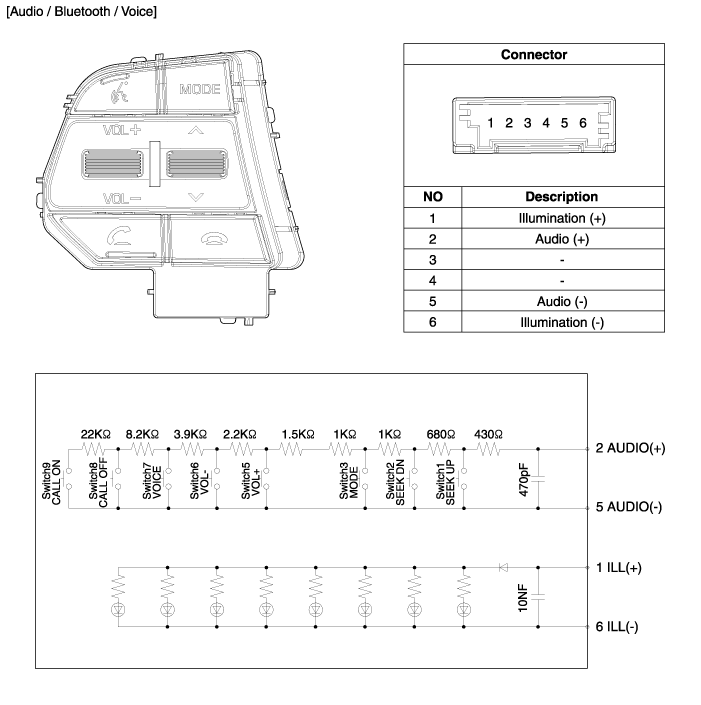

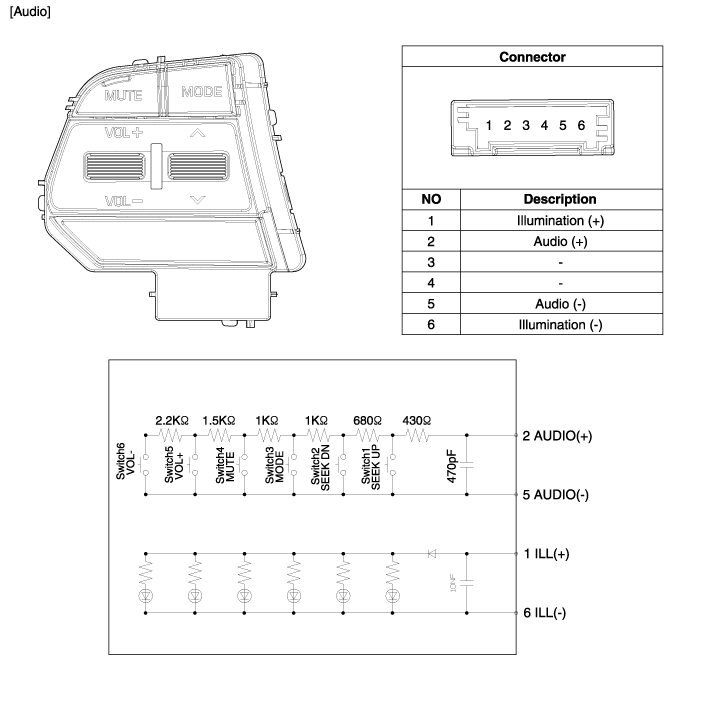

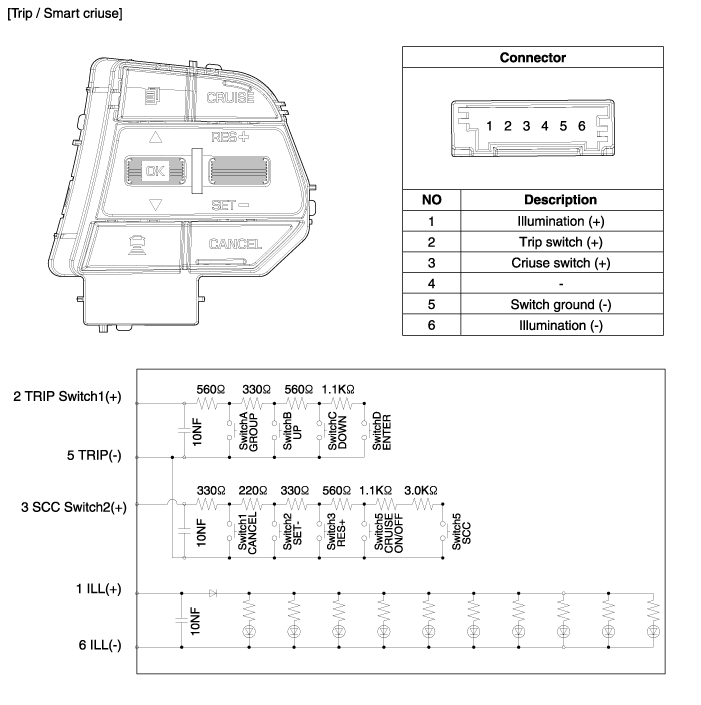

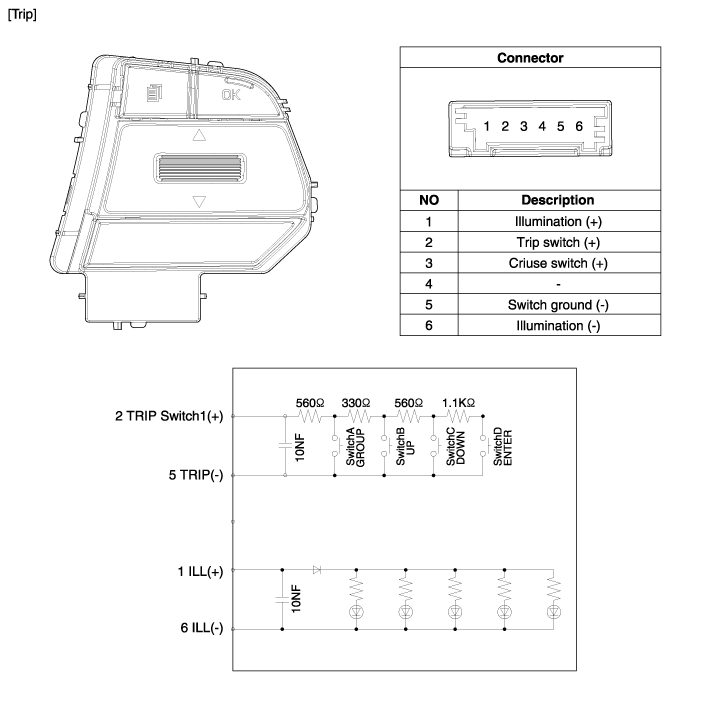

Circuit Diagram

AVN Remote Controller Components and Components Location
Components 1. Left Remote Control Switch (Audio + Hands free)2. Right Remote Control Switch(Cruise+Trip Computer) ...

AVN Remote Controller Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] SwitchConnectorTerminalResistance(±5%)SEEK Up2-5430 ?SEEK Down1.11 k?MODE2.11 k?MUTE ...
