Hyundai Sonata LF: Charging System / Alternator Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Engine Electrical System / Charging System / Alternator Components and Components Location

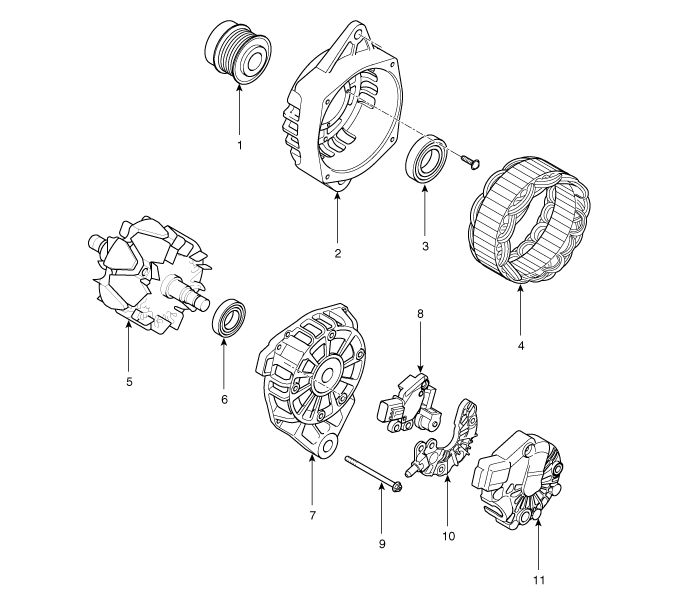

Components

1. OAD (Overrunning Alternator Decoupler)
2. Front Bracket
3. Front Bearing
4. Stator
5. Rotor
6. Rear Bearing
7. Rear Bracket
8. Brush Holder Assembly
9. Through Bolt
10. Rectifier Assembly
11. Rear Cover

    Alternator Specifications

    Specification ItemSpecificationRated voltage 13.5V, 130A Speed in use 1,000 ~ 18,000 rpm Voltage regulator IC Regulator built-in type Regulator Setting Voltage External mode Refer to below graph Internal mode 14...

    Alternator Schematic Diagrams

    Circuit Diagram     • COM signal - When controlling the voltage generated, the ECM sends the target voltage data to the alternator via a PWM signal...
