Hyundai Sonata: Advanced Smart Cruise Control System / Advanced Smart Cruise Control (ASCC) ECU Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Engine Electrical System / Advanced Smart Cruise Control System / Advanced Smart Cruise Control (ASCC) ECU Schematic Diagrams

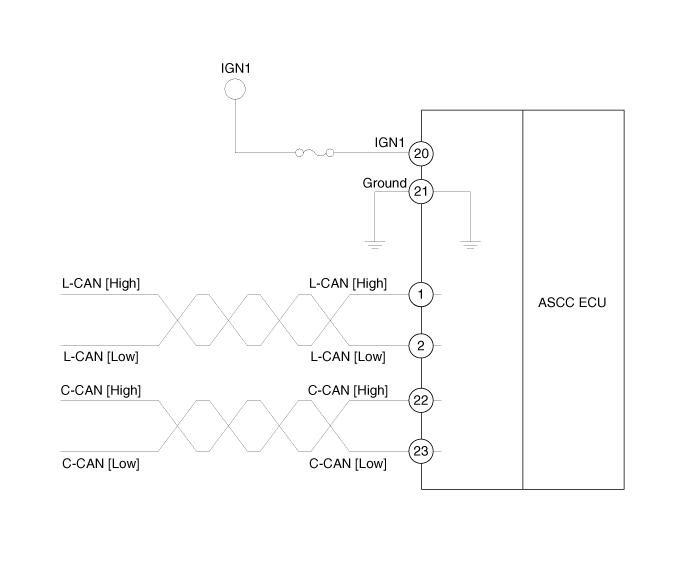

Circuit Diagram

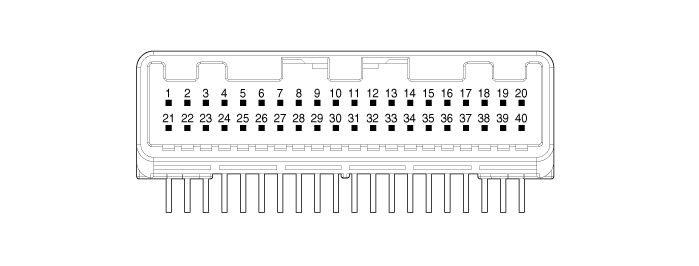

Terminal Function

No.
Description
1
L-CAN [Low]
2
L-CAN [High]
20
IGN1
21
Ground
22
C-CAN [High]
23
C-CAN [Low]

Advanced Smart Cruise Control (ASCC) Switch Repair procedures
Inspection [Measuring Resistance] 1. Disconnect the smart cruise control switch connector from the control switch. 2. Measure resistance between terminals on the control switch when each fu ...

Advanced Smart Cruise Control (ASCC) ECU Repair procedures
Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal. 2. Disconnect the ASCC ECU connector (A). 3. Remove the ASCC ECU (C) after remove the installati ...
