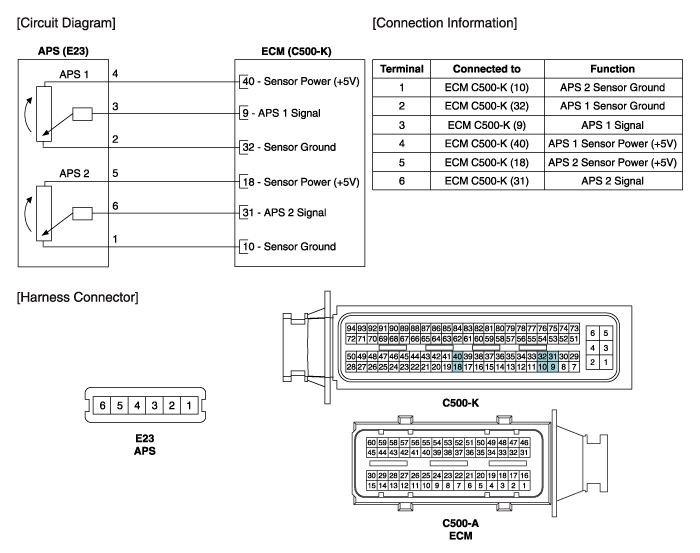

| Circuit Diagram |

Accelerator Position Sensor (APS) Repair proceduresInspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Turn the ignition switch ON. 3. Measure the output voltage of the APS 1 and 2 at C...
Removal 1. Turn ignition OFF and disconnect the negative (-) battery cable. 2. Remove the floor console assembly. (Refer to Body - “Floor console assembly") 3. Remove the EPB switch after loosening the screws. 4. Install in the reverse order of removal...
Description Auto Cut System Of Dark Current AbbreviationExpalnationACUAirbag Control UnitADMAssist Door ModuleB_CANBody Controller Area NetworkBCMBody Control ModuleBSDBlind Spot DetectionC_CANChassis Controller Area NetworkCLUCluster ModuleDATCDual Automatic Temp ControlDDMDriver Door ModuleESCElectronic Stability ProgramEMSEngine Management SystemLDWSLane Departure Warning SystemM_CANMulti media Controller Area NetworkMDPSMotor Driven Power SteeringP_CANPowertrain Controller Area NetworkPSMPower Seat ModuleSASSteering Angle SensorSJBSmart Junction BlockSMKSmart Key UnitSPASSmart Parking Assist SystemTCUTransmission Control UnitTPMSTire Pressure Monitoring SystemVDCVehicle Dynamic ControlTMUTelematics SystemABSAnti-lock Brake SystemSCCSmart Cruise Control Smart Junction Block (SJB) General function : Interior Junction Block + some functions of BCM It controls loads with CAN communication and IPS...
