Components Location

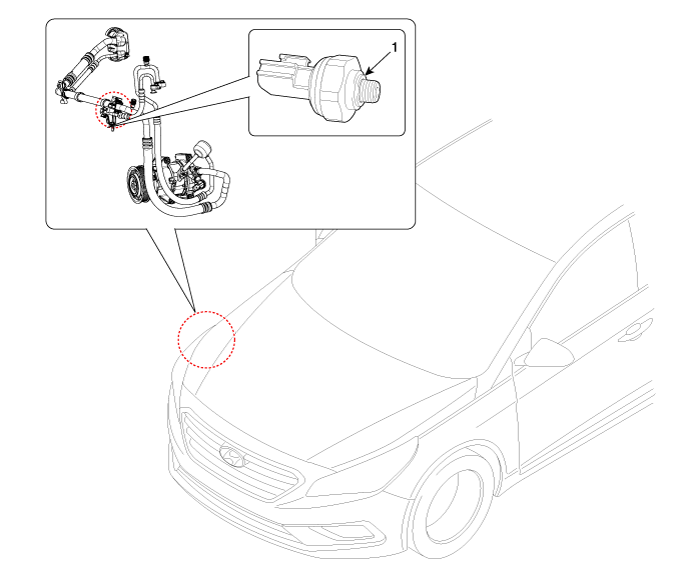

1. A/C Pressure Transducer

Receiver-Drier Repair procedures

Replacement 1. Remove the condenser. 2. Remove the cap (B) on the bottom of the condenser with a L wrench [Hex 14] (A). Tightening torque : 4.0 ± 1.0 N.m (0.41 ± 0.1 kgf.m, 2.95 ± 0.72 ...

A/C Pressure Transducer Description and Operation

Description The A/C Pressure Transducer (APT) converts the pressure value of high pressure line into voltage value after measuring it. By converted voltage value, engine ECU controls the coolin ...
