Hyundai Sonata: Power Windows / Window opening and closing
To open:

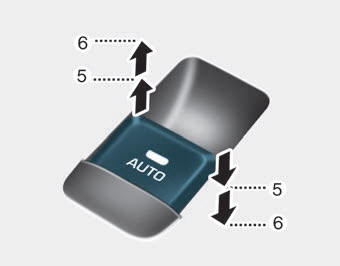

Press the window switch down to the first detent position (5). Release the switch when you want the window to stop.
To close:
Pull the window switch up to the first detent position (5). Release the window switch when you want the window to stop.
