Tire Specification and Pressure Label

The tires supplied on your new vehicle are chosen to provide the best performance for normal driving.

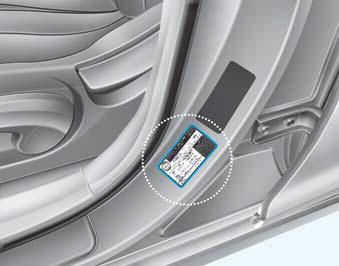

The tire label located on the driver's side center pillar gives the tire pressures recommended for your car.

Engine Number

The engine number is stamped on the engine block as shown in the drawing.
