Hyundai Sonata LF: General Information / Components and Components Location
| Components |

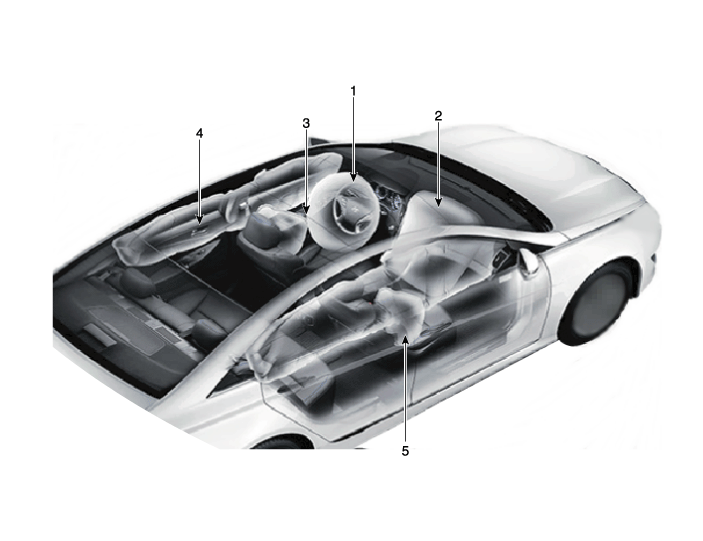

| 1. Driver Airbag (DAB) 2. Passenger Airbag (PAB) 3. Knee Airbag (KAB) | 4. Curtain Airbag (CAB) 5. Side Airbag (SAB) |
| Components Location |

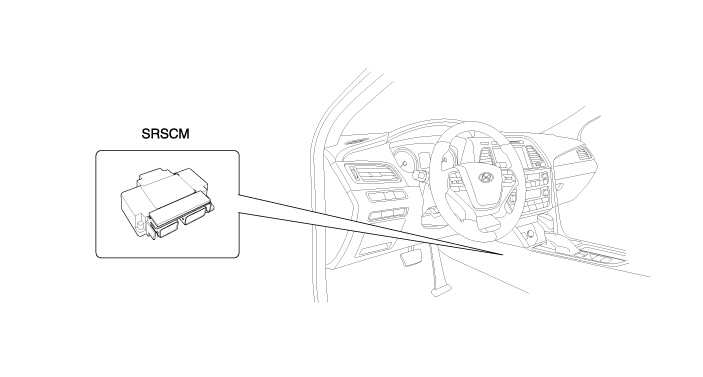

| Supplemental Restraint System Control Module (SRSCM) |

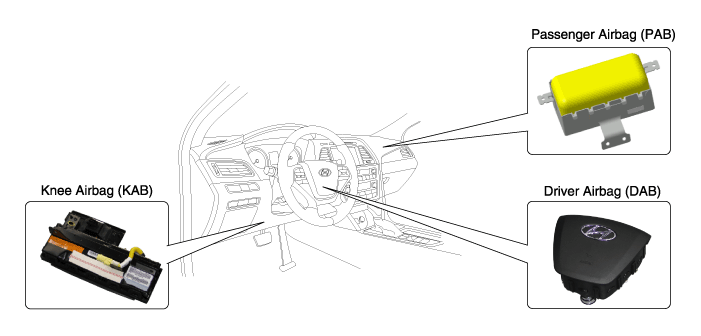

| Driver Airbag (DAB) / Passenger Airbag (PAB) / Knee Airbag (KAB) |

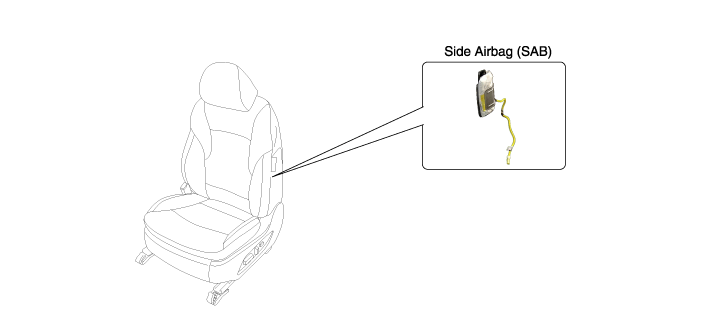

| Side Airbag (SAB) |

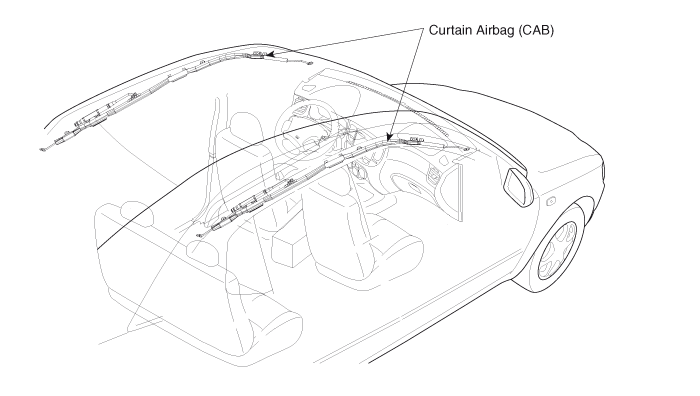

| Curtain Airbag (CAB) |

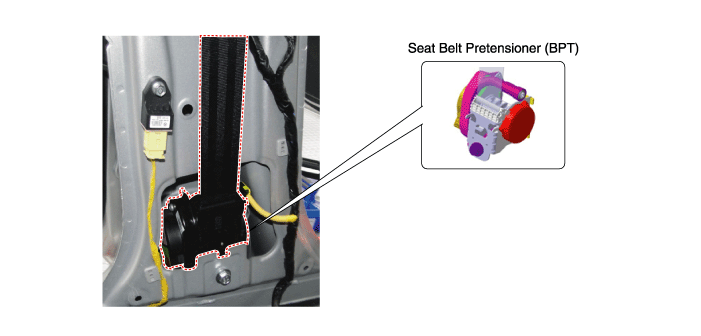

| Seat Belt Pretensioner (BPT) |

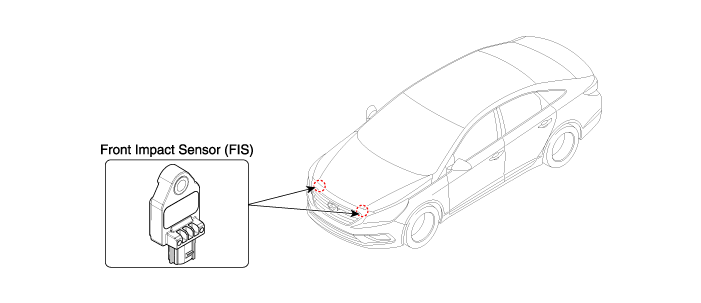

| Front Impact Sensor (FIS) |

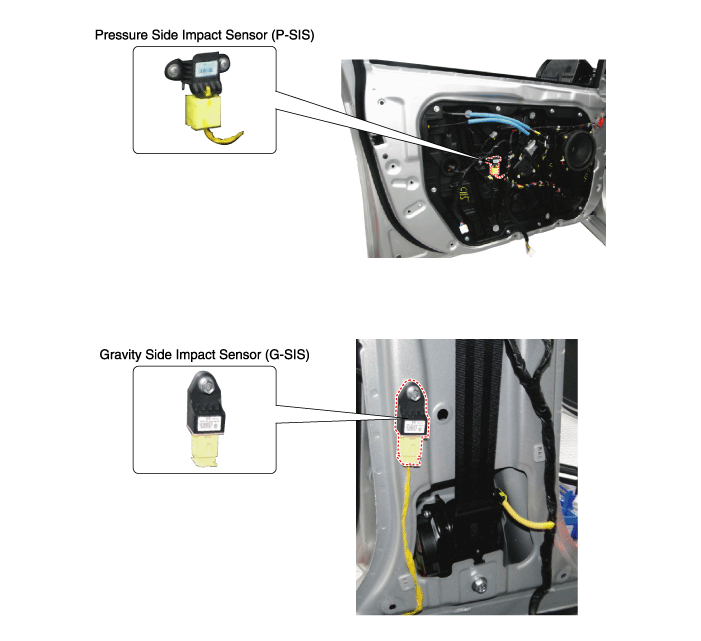

| Side Impact Sensor (SIS) |
Repair procedures
Component Replacement After Deployment Before doing any SRS repairs, use the GDS Pro to check for DTCs. Refer to the Diagnostic Trouble Code list for repairing of the related DTCs...
SRSCM
..
