Hyundai Sonata: Brake System / Stop Lamp Switch Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Brake System / Brake System / Stop Lamp Switch Components and Components Location

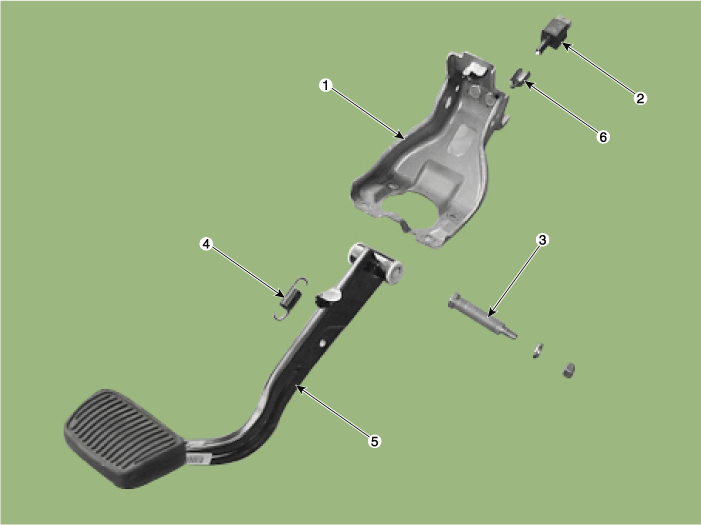

Components Location

1. Brake pedal member assembly
2. Stop lamp switch
3. Bolt
4. Return spring
5. Brake pedal assembly
6. Locking plate
