Hyundai Sonata LF: Electric Power Steering / Steering Column and Shaft Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Steering System / Electric Power Steering / Steering Column and Shaft Components and Components Location

Components

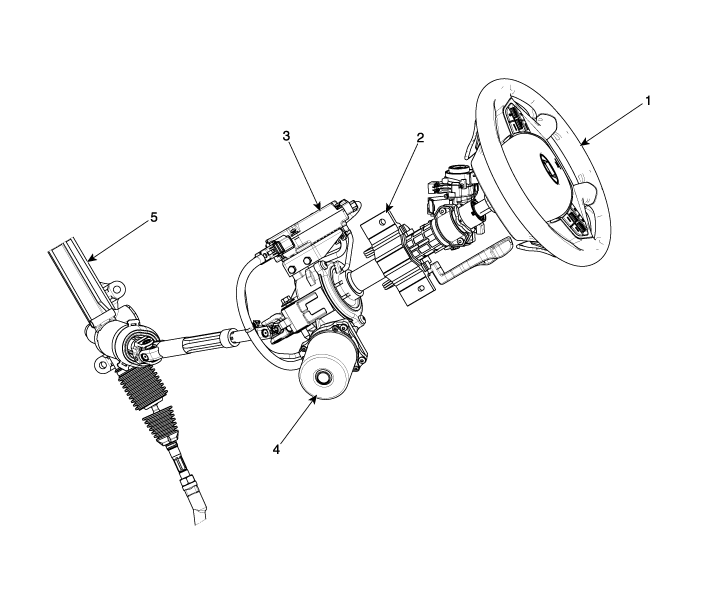

[C-MDPS]

1. Steering wheel
2. Steering column
3. ECU

4. Motor
5. Steering gear box

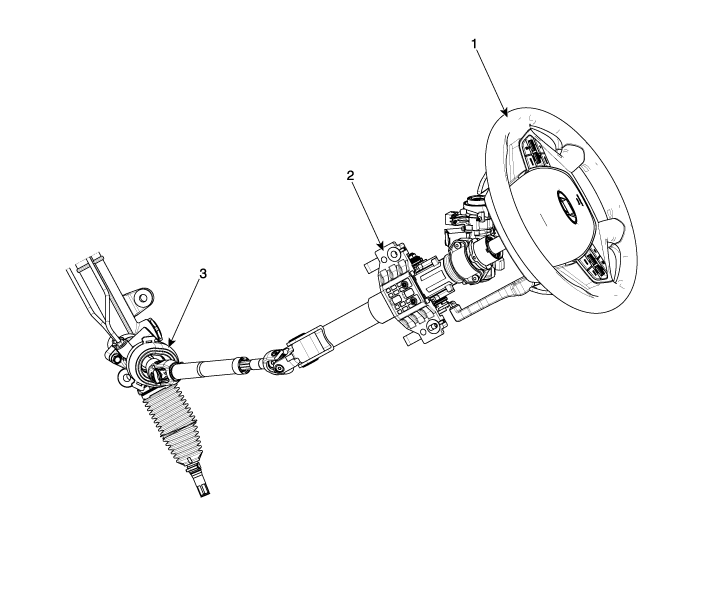

[R-MDPS]

1. Steering wheel
2. Steering column

3. Steering gear box

Repair procedures

General Inspection After or before servicing the EPS system, perform the troubleshooting and test procedure as follows. Compare the system condition with normal condition in the table below and if abnormal symptom is detected, perform necessary remedy and inspection...

Steering Column and Shaft Repair procedures

Removal [For C-MDPS Type] Must be backup the ECU data before exchanging the ECU. The backup data is stored by the VIN number...
