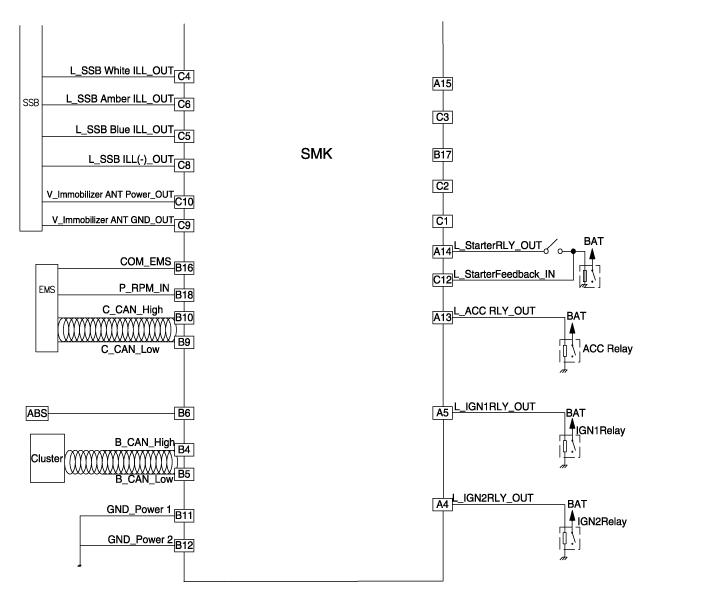

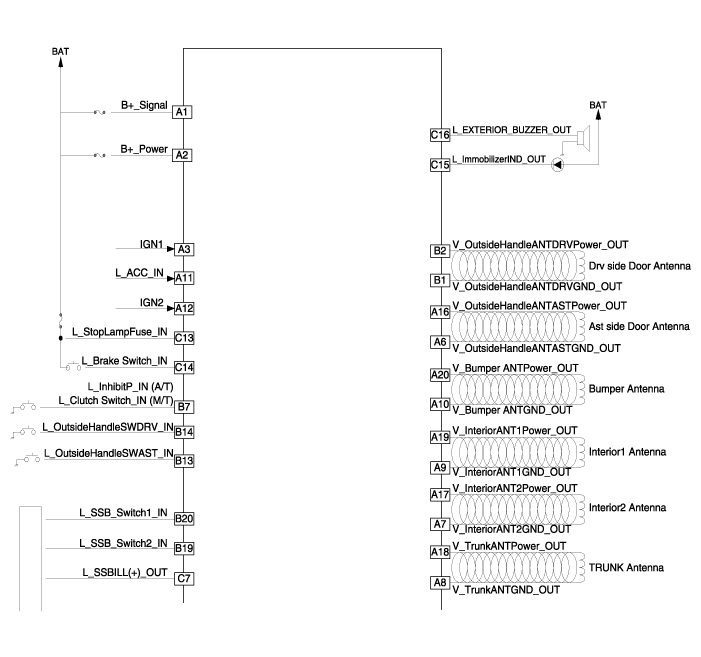

| Circuit Diagram |


Smart Key Unit Repair proceduresRemoval Smart Key Unit 1. Disconnect the negative (-) battery terminal. 2. Remove the glove box. (Refer to Body - "Glove Box Upper Cover Assembly") 3...
Self Diagnosis 1. Self-diagnosis process. • When operating the self-diagnostics, the below fault (self-diagnostics code) will blink at 0.5 seconds interval on the temperature display settings (driver's side only) and the remaining symbols are OFF ...
Removal 1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Turn the crankshaft damper pulley so that No. 1 piston is at top dead center. (1) Turn the crankshaft damper pulley and align its groove with the timing mark on the timing chain cover (0° mark on the timing scale)...
