Hyundai Sonata: Button Engine Start System / Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Button Engine Start System / Schematic Diagrams

Circuit Diagram (1)

Components and Components Location

Component Location 1. Start Stop Button(SSB)2. FOB key3. Trunk lid switch4. Body control module (BCM)5. Interior antenna 16. Interior antenna 27. Smart key unit8. Trunk antenna9. Door handle ...

Description and Operation

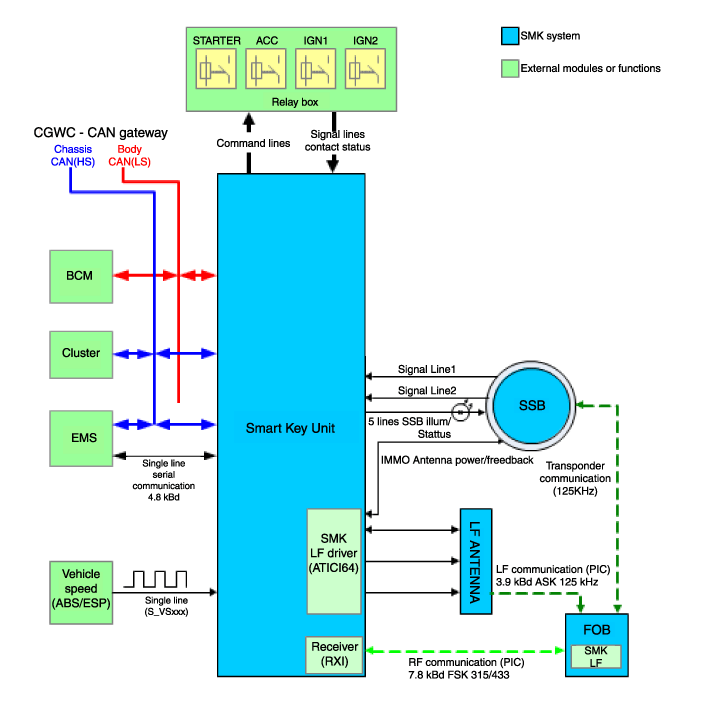

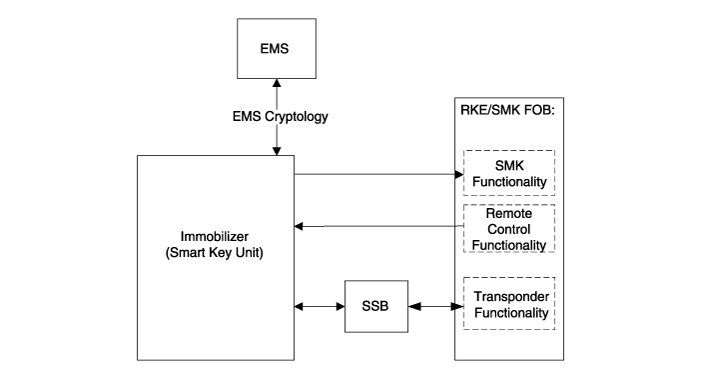

Description System Overview The System offers the following features: - Human / machine interface through a 1-stage button, for terminal switching and engine start. - Control of external ...
