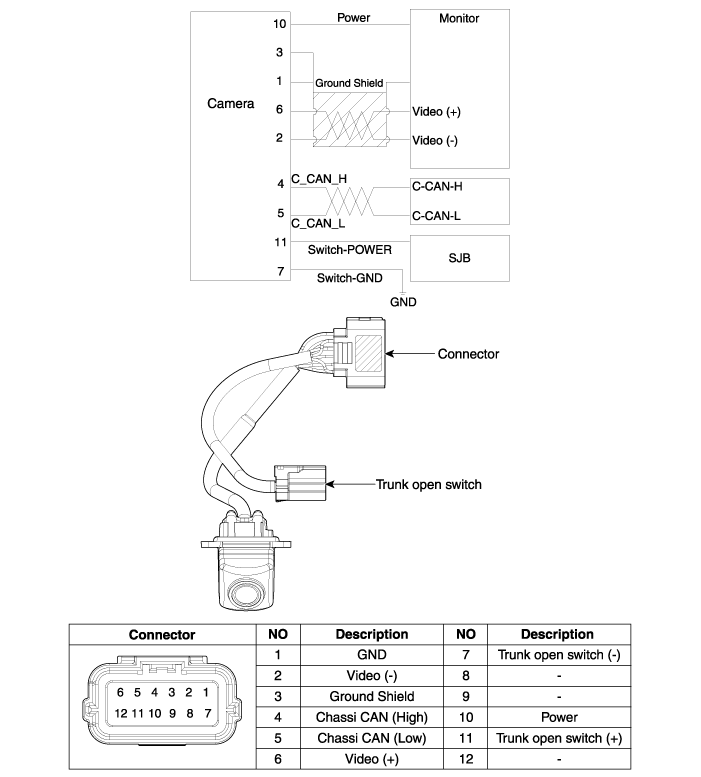

Hyundai Sonata LF: Back View Camera System / Schematic Diagrams

Components and Components Location

C..

Description and Operation

Description Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system that shows behind the vehicle through the AV monitor or the ECM (Reverse Display Room Mirror) mirror while backing-up...
