Hyundai Sonata: Auto Lighting Control System / Schematic Diagrams

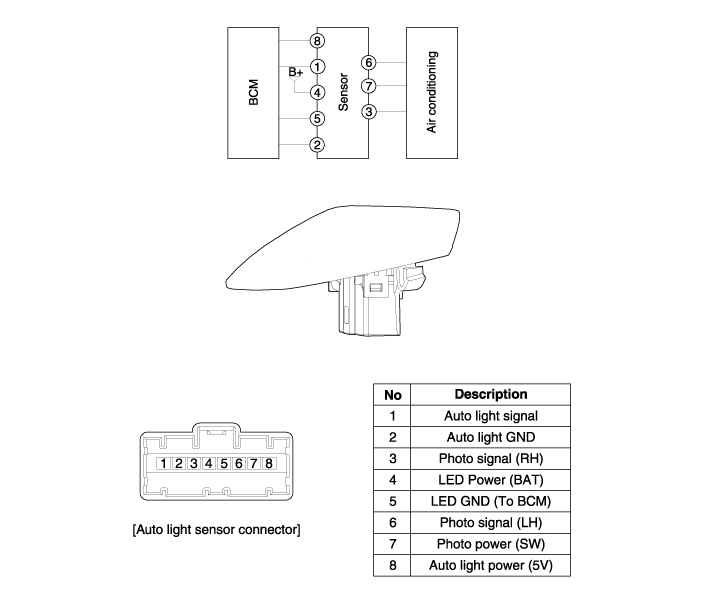

Circuit Diagram

Components and Components Location
Component Location 1. Auto light sensor2. Head lamps3. Lighting switch (Auto)4. Tail lamps5. BCM (Body Control Module) ...

Description and Operation
Description It's a system that uses illumination sensor to automatically turn ON the tail lamp and head lamp based on the change in surrounding environment's illumination condition. It activate ...
