Hyundai Sonata: Trunk Trim / Repair procedures

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Trunk Trim / Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear seat back assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the rear package tray trim.
(Refer to Interior Trim - "Package Tray Trim")
4.
Remove the luggage cover board (A).
5.
Remove the rear transverse trim (B).
6.
Remove the luggage partition side trim (C).
7.
After loosening the mounting screws, then remove the luggage side trim (D).
8.
Install in the reverse order of removal.

•
Replace any damage clips.

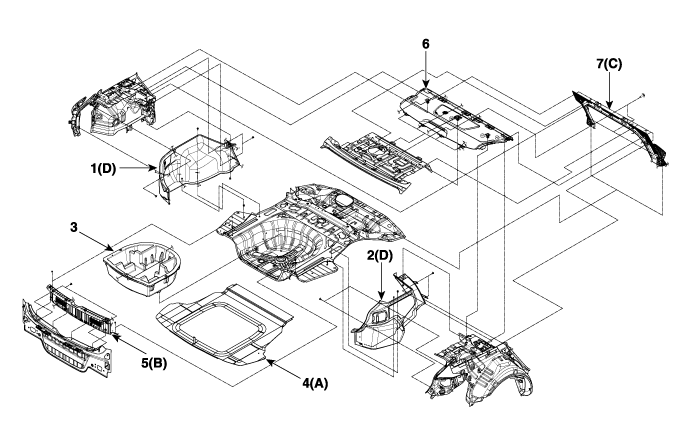

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. TMK tray
4. Luggage cover board
5. Rear transverse trim
6. Package tray trim
7. Luggage partition side trim

Trunk Trim
...
