Hyundai Sonata: Audio / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Audio / Components and Components Location

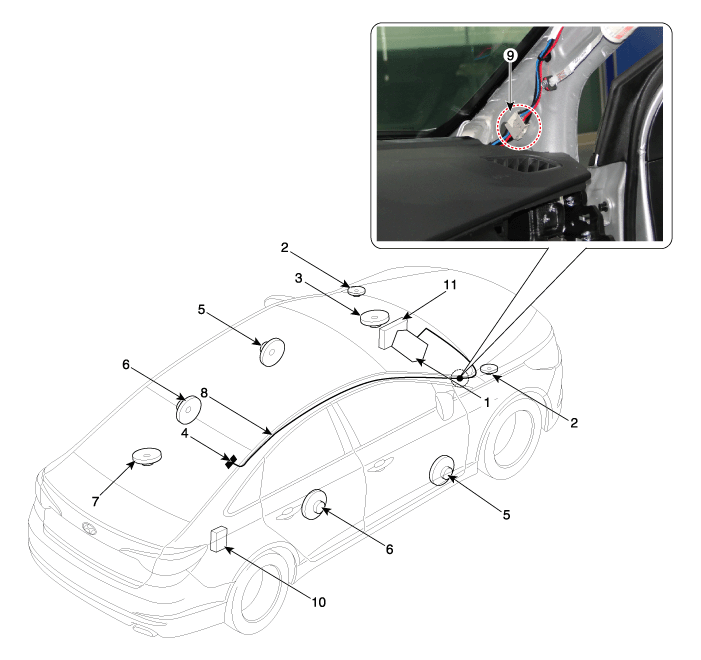

Component Location

1. Audio unit
2. Midrange speaker
3. Center speaker
4. Glass antenna amplifier
5. Front door speaker
6. Rear door speaker

7. Woofer speaker (Option)
8. Antenna feeder cable
9. Feeder cable joint connector
10. External amplifier
11. Audio Blue Link unit (I-Box)

? SDARS : Satellite Digital Audio Radio Service

Specifications

Specifications Audio ItemsAudioModel1) RADIO/CD/MP3 (PA30A, Internal Amplifier)2) RADIO/CD/MP3/SDARS (PA30B+, Internal Amplifier)3) RADIO/CD/MP3/SDARS (PA30B+, External Amplifier)4) RADIO/CD/MP3/S ...

Audio Unit Components and Components Location

Components Connector Pin Information NoConnector AConnector B1Rear left speaker (+)CAN High2Front left speaker (+)-3Front right speaker (+)-4Rear right speaker (+)Steering wheel remote5--6-USB D ( ...
