Hyundai Sonata: Rear Window Glass / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Rear Window Glass / Components and Components Location

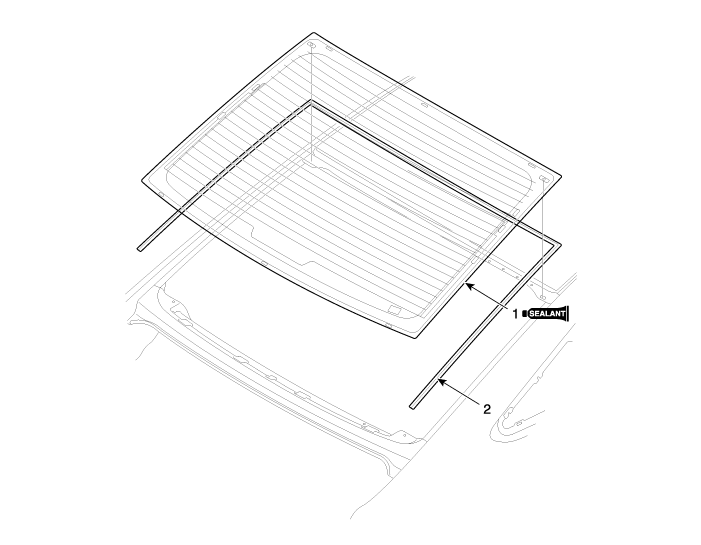

Components

1. Rear window glass

2. Rear glass lower moulding

Repair procedures

Removal • Put on gloves to protect your hands. • Use seat covers to avoid damaging any surfaces. 1. Remove the roof side molding. ...
