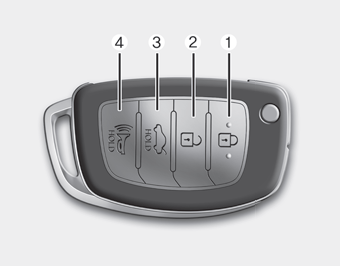

Your HYUNDAI uses a remote key, which you can use to lock or unlock a door (and trunk) and even start the engine.
1. Door Lock
2. Door Unlock
3. Trunk Open
4. Panic
Locking
To lock :
1. Close all doors, engine hood and trunk.
2. Press the Door Lock button (1) on the remote key.
3. The hazard warning lights will blink and the chime will sound once if the lock button is pressed once more within four seconds.
4. Make sure the doors are locked by checking the position of the door lock button inside the vehicle.
Information
After locking the doors, if you press the Door Lock button again within four seconds, the hazard warning lights will blink and the horn will sound one time to confirm that the doors are locked.
WARNING
Do not leave the keys in your vehicle with unsupervised children. Unattended children could place the key in the ignition switch and may operate power windows or other controls, or even make the vehicle move, which could result in serious injury or death.
Unlocking
To unlock:
1.Press the Door Unlock button (2) on the remote key.
2.The driver’s door will unlock. The hazard warning lights will blink two times.
If you press the Door Unlock button again within four seconds, then all the doors will unlock.
Information
After unlocking the doors, the doors will lock automatically after 30 seconds unless a door is opened.
Trunk opening
To open:
1. Press the Trunk Unlock button (3) on the remote key for more than one second.
2. The hazard warning lights will blink two times.
Once the trunk is opened and then closed, the trunk will lock automatically.
Information
The word "HOLD" is written on the button to inform you that you must press and hold the button for more than one second.
Panic button
Press the Panic button (4) for more than one second. The horn sounds and hazard warning lights flash for about 30 seconds.
To cancel the panic mode, press any button on the remote key.
NOTICE
To prevent damaging the remote key:
