Hyundai Sonata: Remote Key / Battery replacement
If the remote key is not working properly, try replacing the battery with a new one.
Battery Type: CR2032

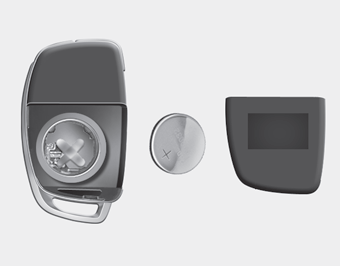

To replace the battery:
1. Pry open the rear cover of the remote key.
2. Remove the old battery and insert the new battery. Make sure the battery position is correct.
3. Reinstall the rear cover of the remote key.
If you suspect your remote key might have sustained some damage, or you feel your remote key is not working correctly contact an authorized HYUNDAI dealer.
Information
An inappropriately disposed battery can be harmful to the environment and human health. Dispose the battery according to your local law(s) and regulation.
