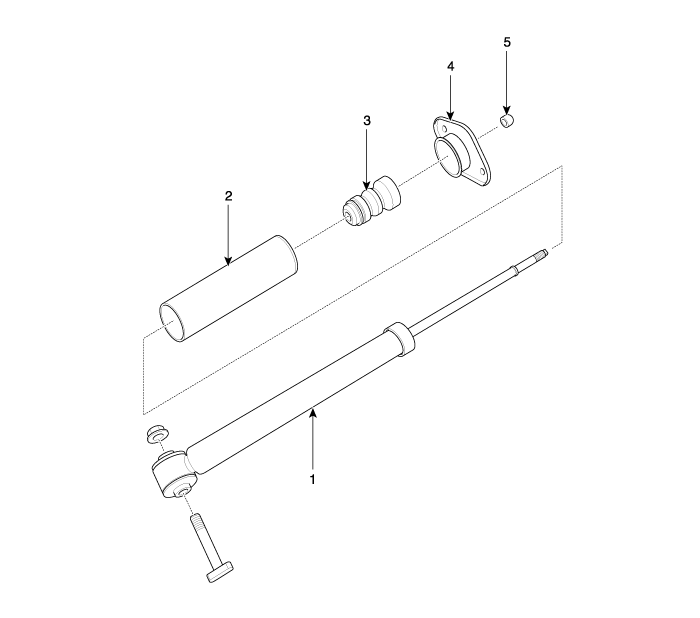

Components

1. Shock absorber assembly
2. Dust cover
3. Bumper stopper
4. Insulator assembly
5. Lock nut




Components and Components Location
Components 1. Sub frame2. Coil spring3. Rear upper arm4. Assist arm5. Trailing arm6. Rear carrier assembly7. Rear shock absorber8. Rear lower arm ...

Rear Shock Absorber Repair procedures
Replacement 1. Raise the vehicle, and make sure it is securely supported. 2. Remove the wheel cap (A).     Be careful not to damage to the wheel cap (A) when removing the it ...
