Hyundai Sonata LF: Rear Suspension System / Components and Components Location
Hyundai Sonata LF 2014-2019 Service Manual / Suspension System / Rear Suspension System / Components and Components Location

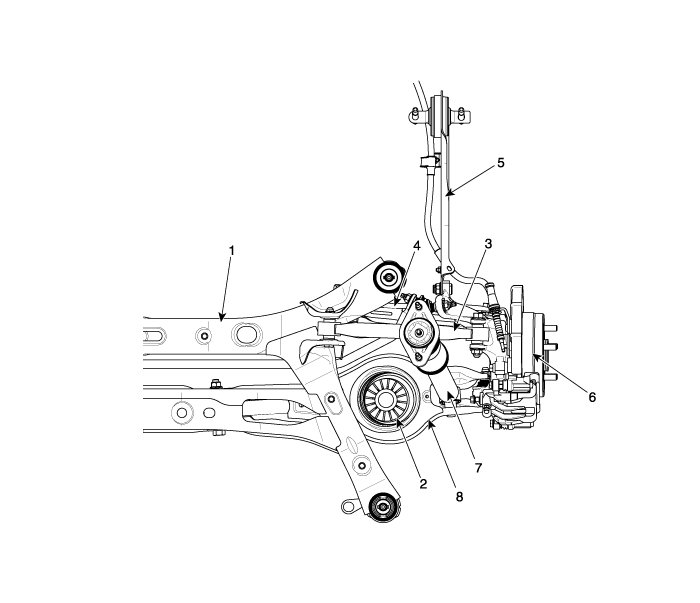

| Components |
| 1. Sub frame 2. Coil spring 3. Rear upper arm 4. Assist arm | 5. Trailing arm 6. Rear carrier assembly 7. Rear shock absorber 8. Rear lower arm |
