Hyundai Sonata: Rear Seat Belt / Rear Seat Belt Buckle Components and Components Location

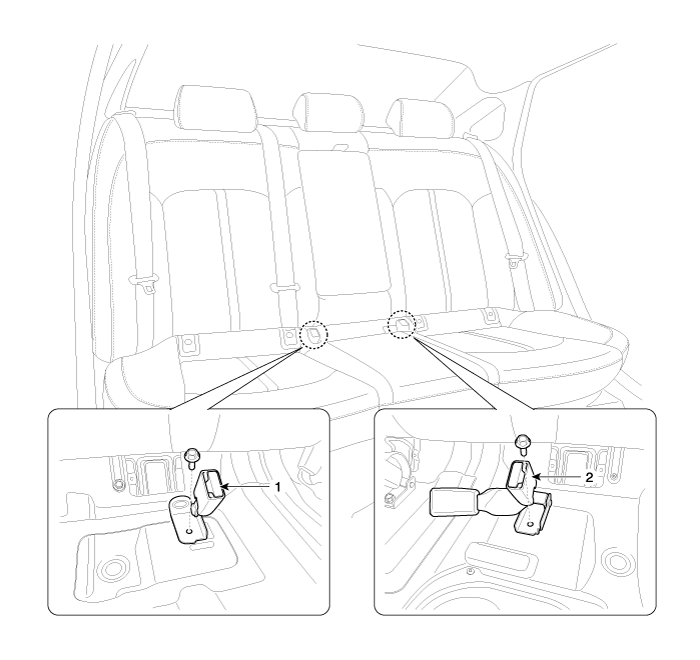

| Component Location |
| 1. Rear seat belt buckle [RH] | 2. Rear seat belt buckle [LH] |
Rear Center Seat Belt Retractor Repair procedures
Replacement
•
When installing the belt, make sure not to damage the retractor.
1.
Remove the rear package tray trim.
(Refer to Interior Trim - "Rear Package Tray ...
Rear Seat Belt Buckle Repair procedures
Replacement
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Loosen the mounting bolt, and then remove the rear seat belt buckle (A).
[LH]
Tighten ...
