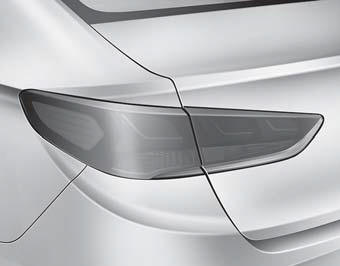

(1) Stop/Tail lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Back-up lamp
(5) Rear side marker (LED) (if equipped)

Stop/Tail lamp and Turn signal lamp (Bulb type)

1. Open the trunk lid.

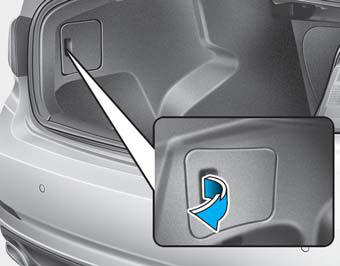

2. Remove the service cover by pulling it out.

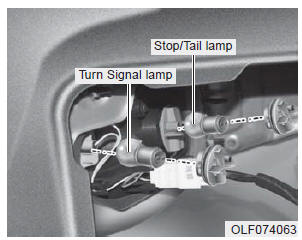

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

Stop/Tail lamp and rear side marker (LED type)

If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Backup lamp and Tail lamp

1. Open the trunk.

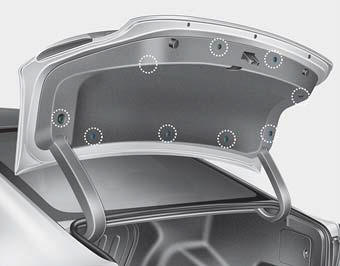

2. Loosen the retaining screw of the trunk lid cover and then remove the cover.

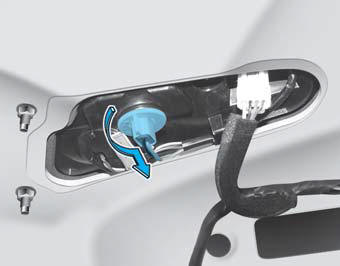

3. Disconnect the connector and then remove the screws by turning the screws counterclockwise.

4. Remove the bulb by pulling it straight out.

5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

7. Reinstall the trunk lid cover by pushing in the screw.

Side Repeater Lamp Replacement
If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer. ...

High Mounted Stop Lamp
1. Remove the rear seat cushion assembly. 2. Remove the rear seat back assembly. 3. Slightly remove the rear door weather-strip. 4. Remove the rear door scuff trim. 5. Remove the rear pillar trim. 6. ...
