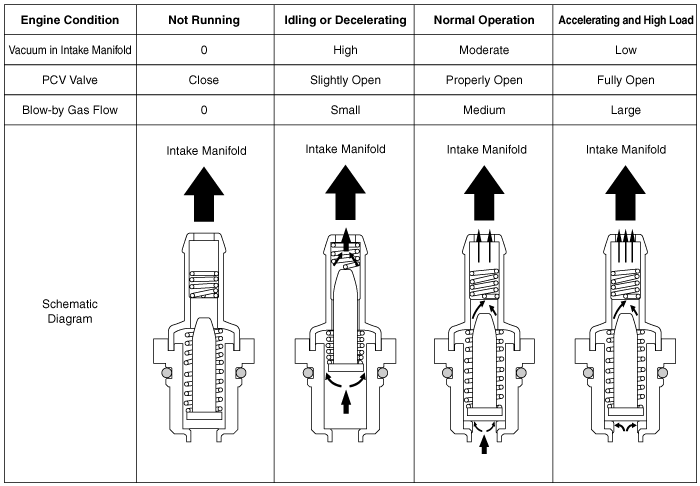

Operation Principle

Repair procedures
Inspection 1. After disconnecting the vapor hose from the PCV valve, remove the PCV valve. 2. Reconnect the PCV valve to the vapor hose. 3. Inspect the PCV vlave operation. (1) Run the ...

Positive Crankcase Ventilation (PCV) Valve Repair procedures
Removal 1. Disconnect the PCV hose (A). 2. Remove the PCV valve (B). Inspection 1. Insert a thin stick (A) into the PCV valve (B) from the threaded side to check that the plunger moves. ...
