Hyundai Sonata: Transmission / Paddle Shifter
.jpg)

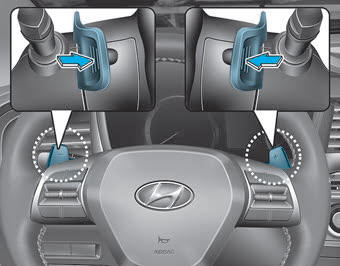

The paddle shifter is available when the shift lever is in the D (Drive) position or Manual shift mode.
With the shift lever in the D position
The paddle shifter will operate when the vehicle speed is more than 6 mph (10 km/h).
Pull the [+] or [-] paddle shifter once to shift up or down one gear and the system changes from automatic mode to manual mode.
The system changes from manual mode to automatic mode:
- When the vehicle speed is lower than 6 mph (10 km/h)
- If you depress the accelerator pedal for more than 5 seconds
- If you move the shift lever from Manual shift mode to D (Drive)
With the shift lever in the manual shift mode
Pull the [+] or [-] paddle shifter once to shift up or down one gear.
Information
If the [+] and [-] paddle shifters are pulled at the same time, gear change may not occur.
