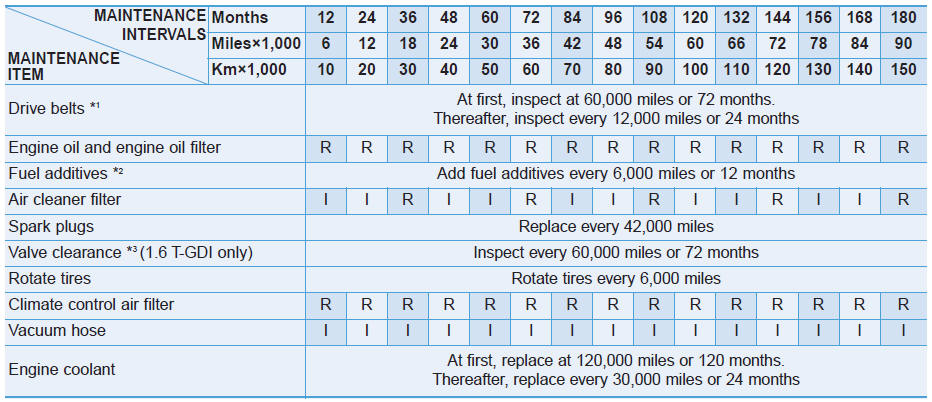

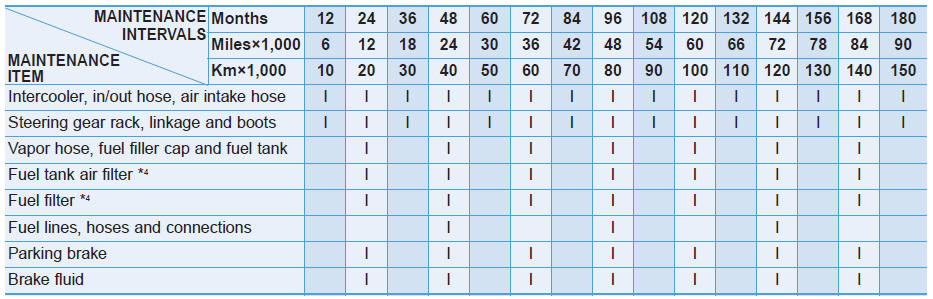

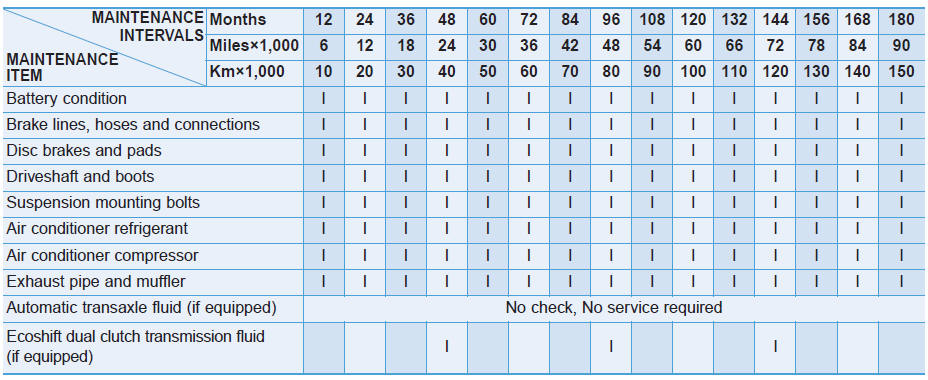

Hyundai Sonata: Scheduled Maintenance Services / Normal Maintenance Schedule (Gamma 1.6 T-GDI/Theta 2.0 T-GDI)

Hyundai Sonata LF 2014-2019 Owners Manual / Maintenance / Scheduled Maintenance Services / Normal Maintenance Schedule (Gamma 1.6 T-GDI/Theta 2.0 T-GDI)

I : Inspect : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
