Hyundai Sonata: Scheduled Maintenance Services / Maintenance Under Severe Usage Conditions (Gamma 1.6 T-GDI/Theta 2.0 T-GDI)

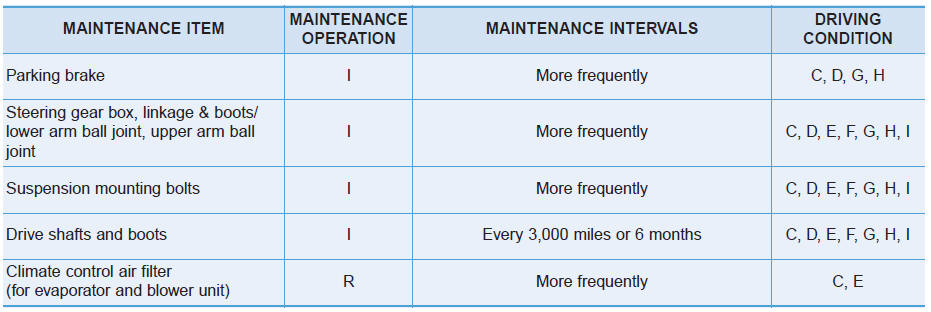

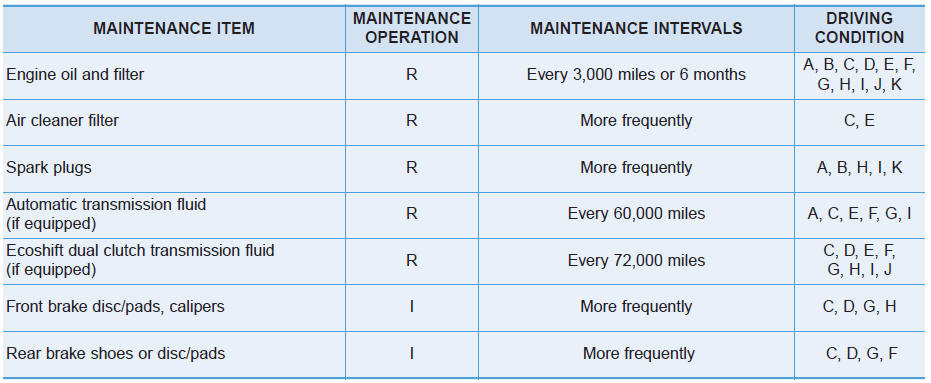

The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
.jpg)
.jpg)
Normal Maintenance Schedule (Gamma 1.6 T-GDI/Theta 2.0 T-GDI)
I : Inspect : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
...
Severe Driving Conditions
A- Repeatedly driving short distances of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature
B- Extensive engine idling or low speed driving for long ...
